FAQ 5723 | Groundwater-Related Subsidence | Result Comparison

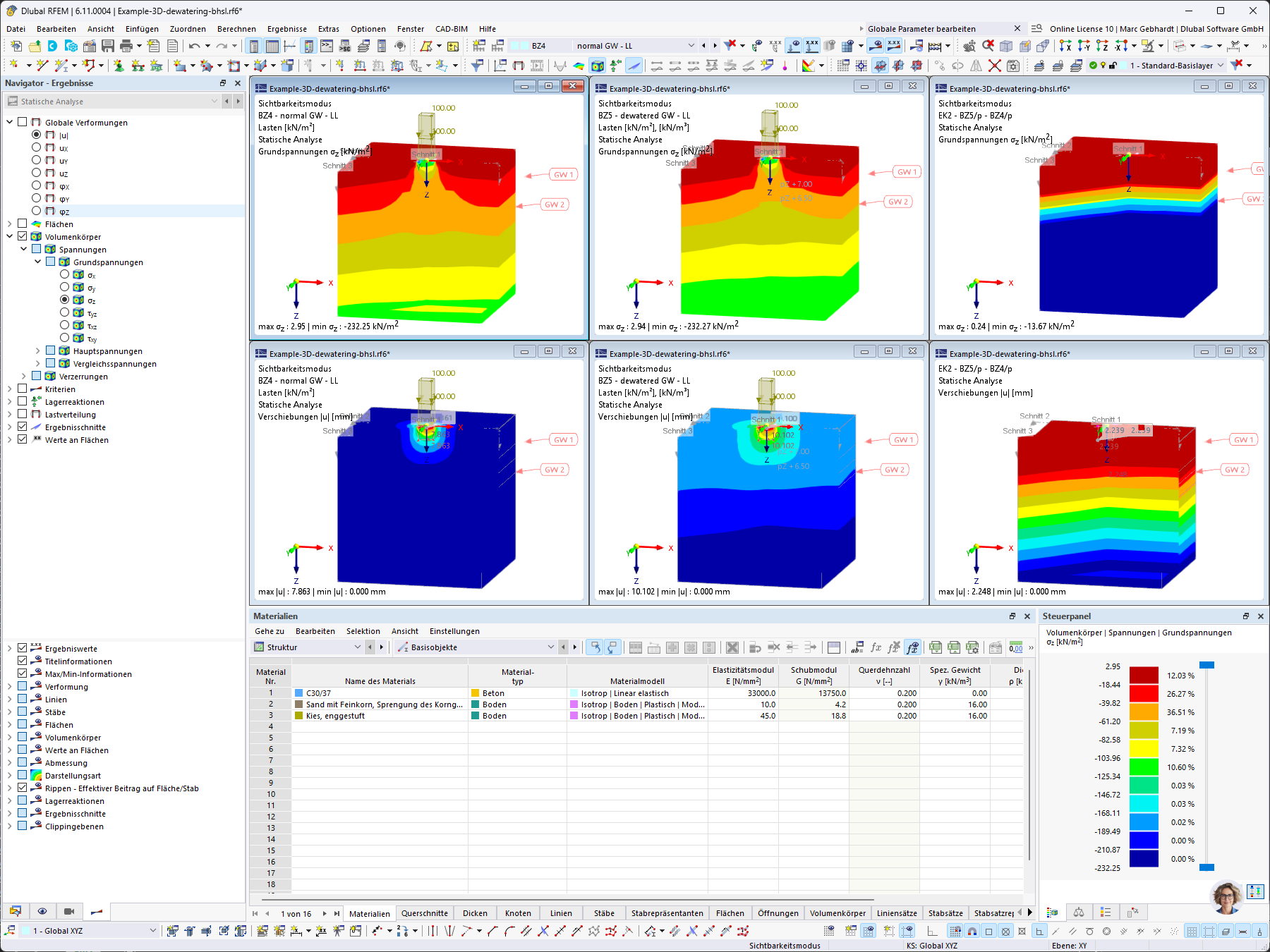

The image shows the results with and without groundwater-related subsidence of the applied payload. The left column shows the condition with normal groundwater level, the middle column with lowered groundwater level, and the right column shows the difference. The upper row shows the normal stresses (in the z-direction) and the lower row shows the total deformations.
Used in
3D Model
Specifications
| Number of Nodes | 28 |
| Number of Lines | 44 |
| Number of Members | 0 |
| Number of Surfaces | 23 |
| Number of Solids | 4 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 2 |
| Total Weight | 1600.000 t |
| Dimensions (Metric) | 11.000 x 10.000 x 11.000 m |
| Dimensions (Imperial) | 36.09 x 32.81 x 36.09 feet |
