Modal Analysis Settings

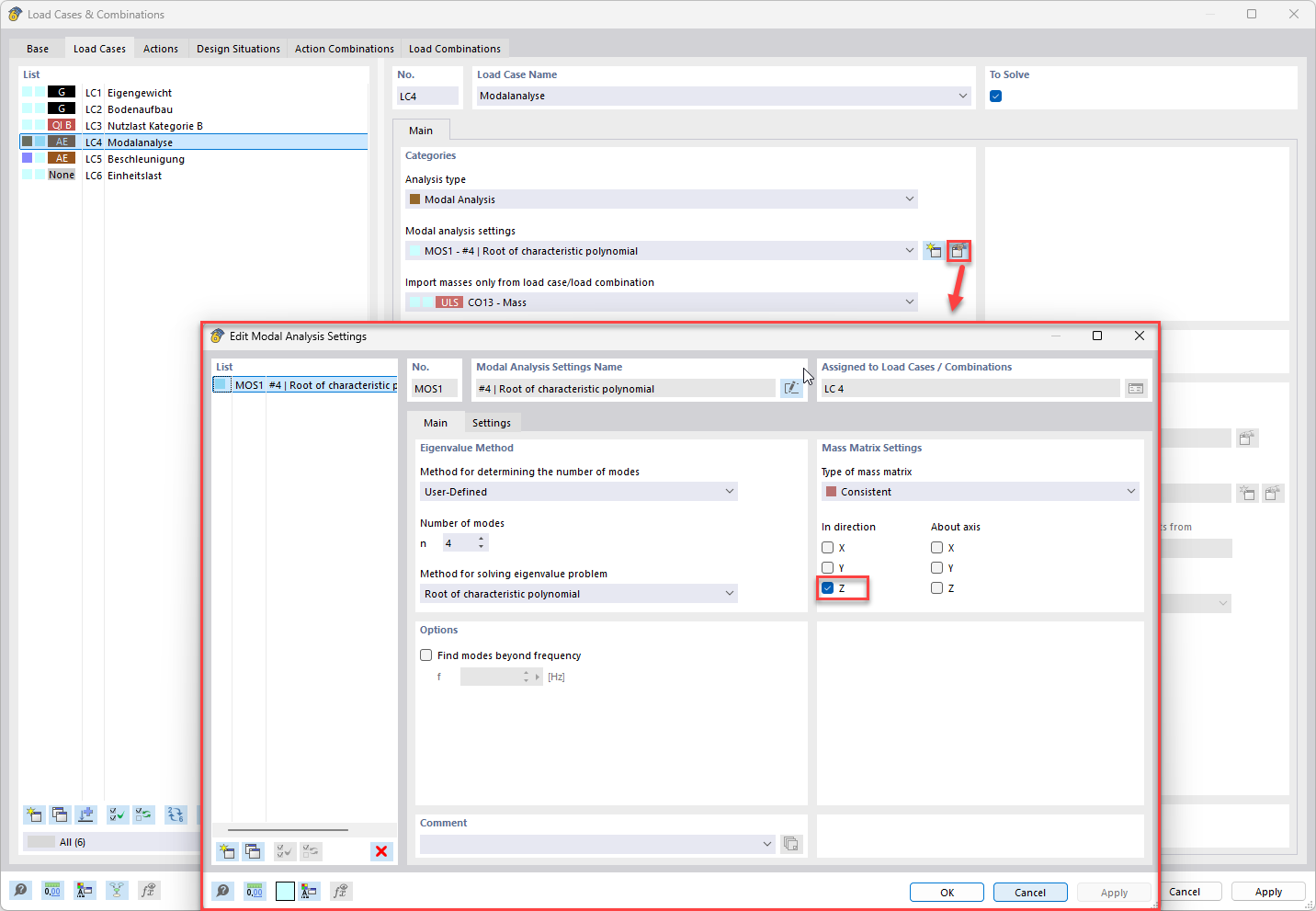

The image shows modal analysis settings in software used to generate dynamic behavior.
The image shows the configurations for modal analysis required to determine the dynamic properties of a structure. This includes parameters such as natural frequencies and mode shapes, which are important for identifying vibration behavior. Correct setup settings allow for a detailed analysis of the structural dynamic responses.
