Reinforced I-Section with Welds
Reinforced I-beam with welds for stabilizing structural elements.

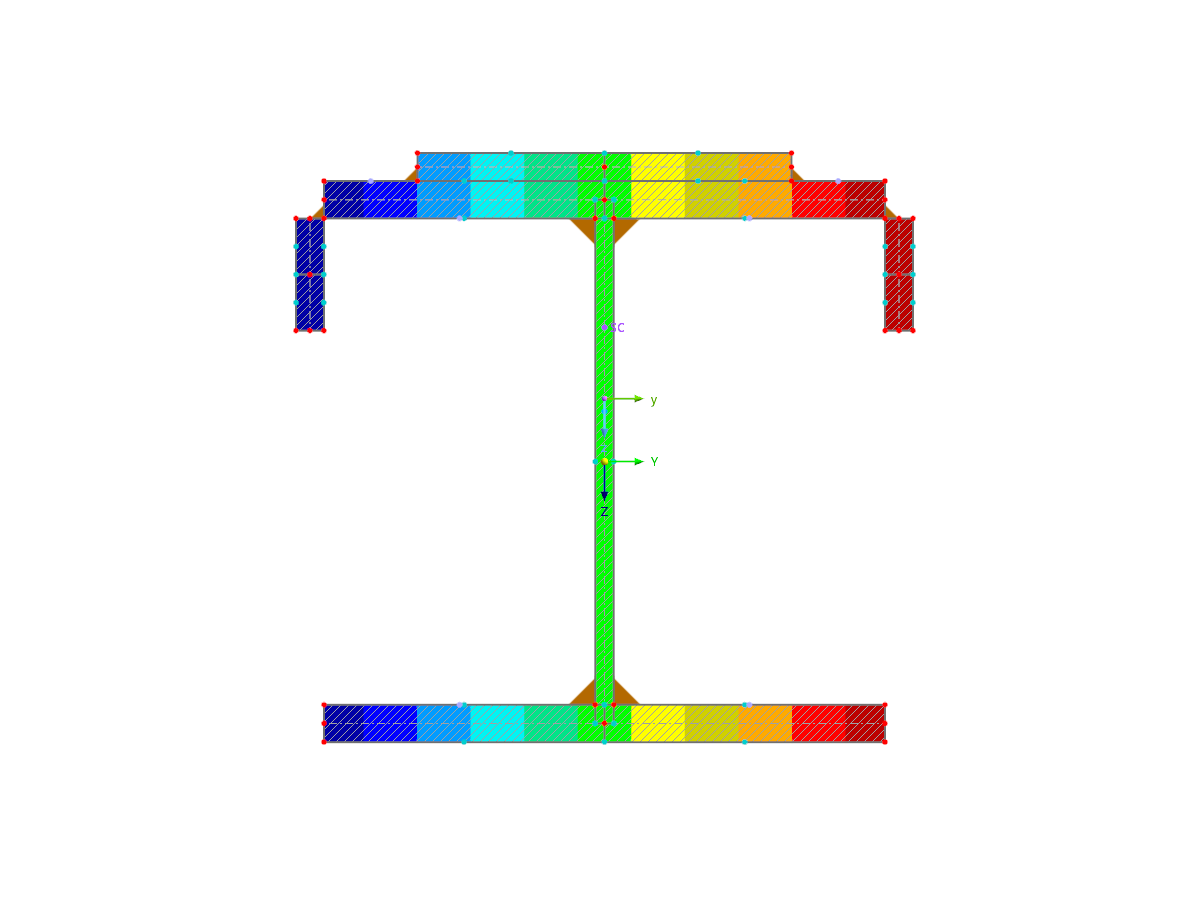

The image shows a reinforced I-section with weld seams that were used to increase structural integrity. Weld seams connect the flanges and the web of the I-section to improve load distribution. The reinforcement serves to increase load-bearing capacity and is frequently used in engineering structures.
Used in
3D Model
Specifications
| Anzahl Knoten | 21 |
| Anzahl Linien | 22 |
| Anzahl Stäbe | 18 |
| Anzahl Flächen | 2 |
| Anzahl Volumenkörper | 0 |
| Anzahl Lastfälle | 6 |
| Anzahl Lastkombinationen | 4 |
| Anzahl Ergebniskombinationen | 0 |
| Gesamtgewicht | 14.204 t |
| Abmessungen | 0.000 x 13.800 x 10.000 m |
