Design of Steel Conveyor Bridge
Steel conveyor bridge for design and analysis with specific details.

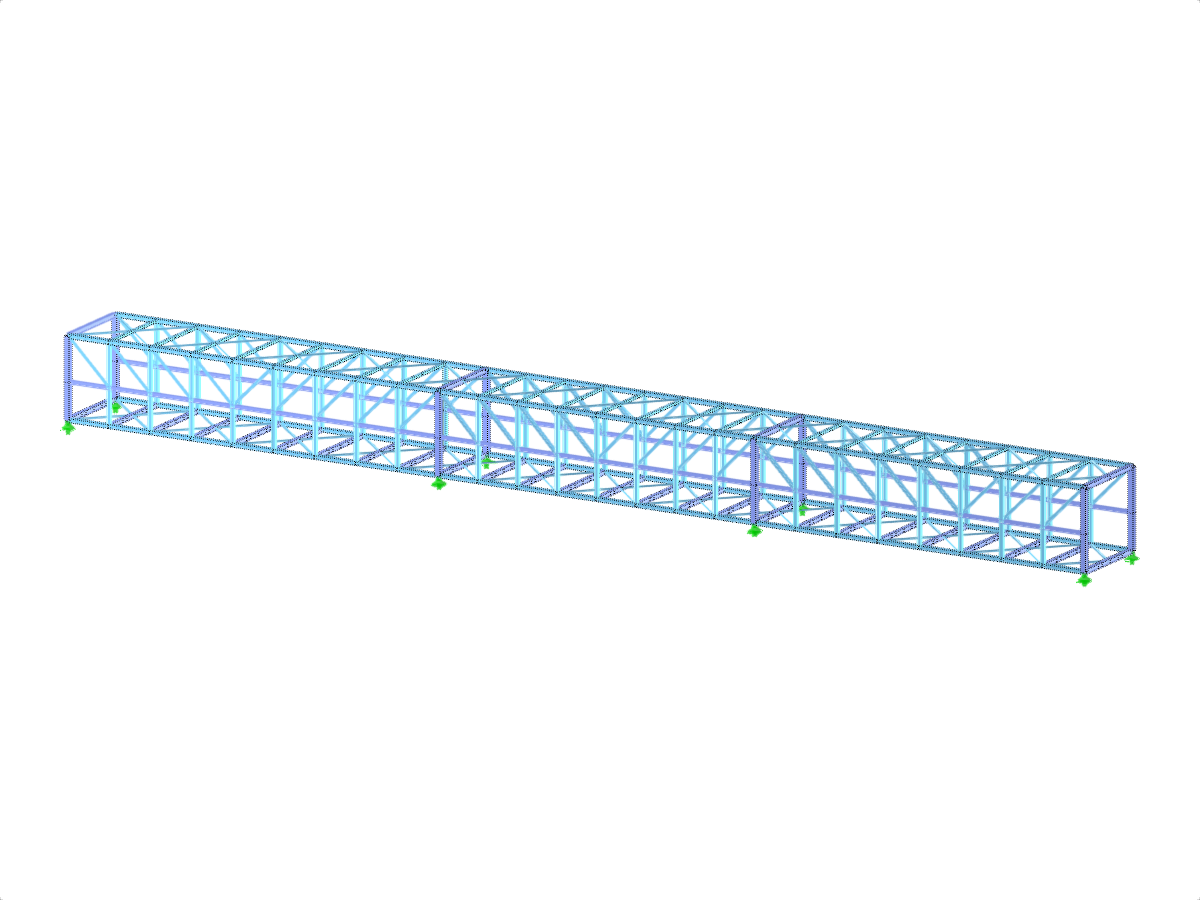

The image shows the design and calculation of a steel conveyor bridge. Detailed aspects of the structure and structural analysis, which are of central importance for the design, are presented. The image illustrates the technical approach and engineering techniques used in the development of such a structure.
3D Model
Specifications
| Number of Nodes | 311 |
| Number of Lines | 611 |
| Number of Members | 611 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 8 |
| Number of Load Combinations | 522 |
| Number of Result Combinations | 3 |
| Total Weight | 69,100 t |
| Dimensions (Metric) | 74,000 x 5,500 x 6,000 m |
| Dimensions (Imperial) | 242.78 x 18.04 x 19.69 feet |
