Structural System and Loading
Structural system and loading

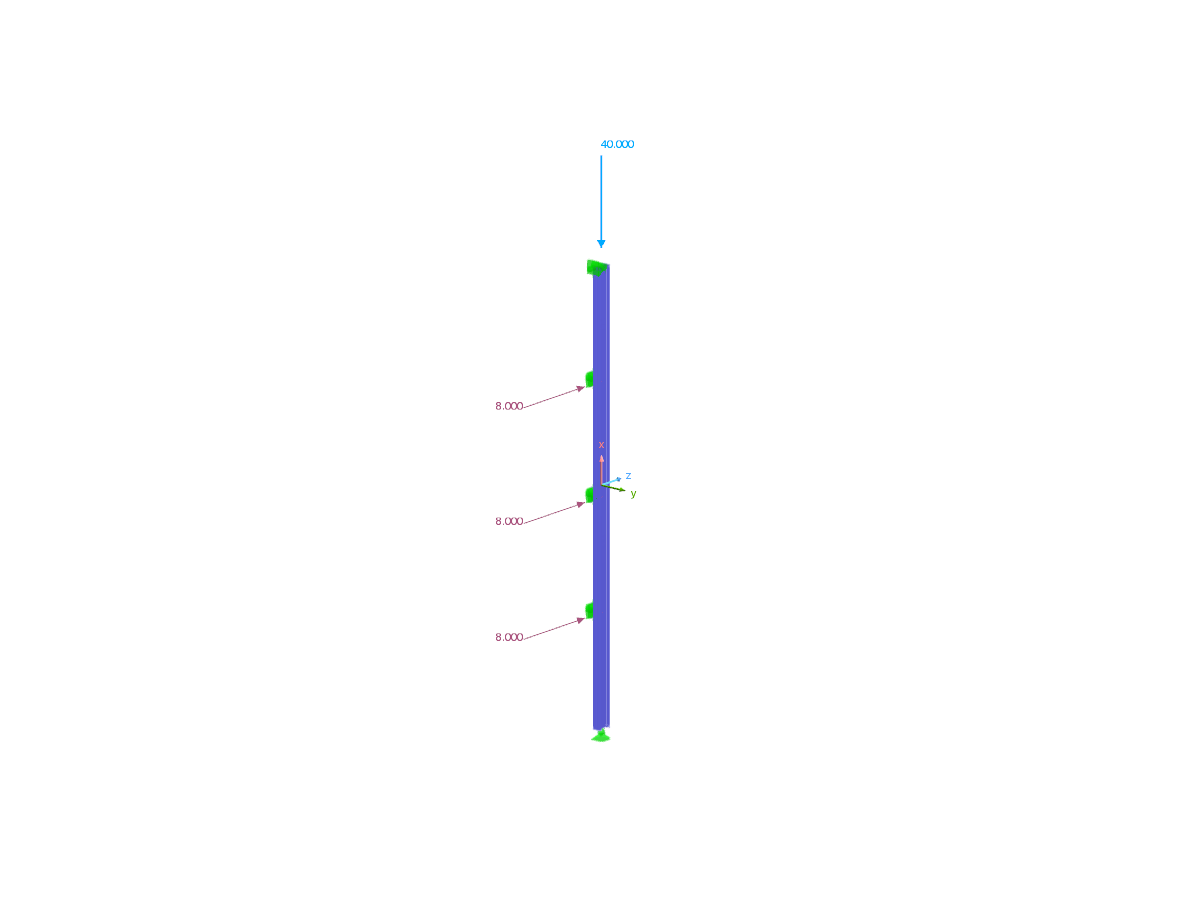

The image shows frame columns with load. The columns are designed as simply supported beams in the z-direction. They are held laterally in the y-direction at one-third points of the column height. In addition, rotation around the x-axis is prevented in the center of the column.
The cross-section consists of two C-sections arranged back-to-back and connected to each other by pairs of screws in the web area. The connection is designed in such a way that local buckling across the entire web width is not prevented.
The column is subjected to an axial compressive force and three transverse loads.
