Display of integrated objects on the terrain surface, excluding pile head nodes
Display of integrated objects on the terrain surface, excluding pile head nodes
2025-11-05
059971

Integrated Objects of Terrain Surface, Including Check of Not Integrated Pile Head Node

Display of integrated objects on the terrain surface, excluding pile head nodes

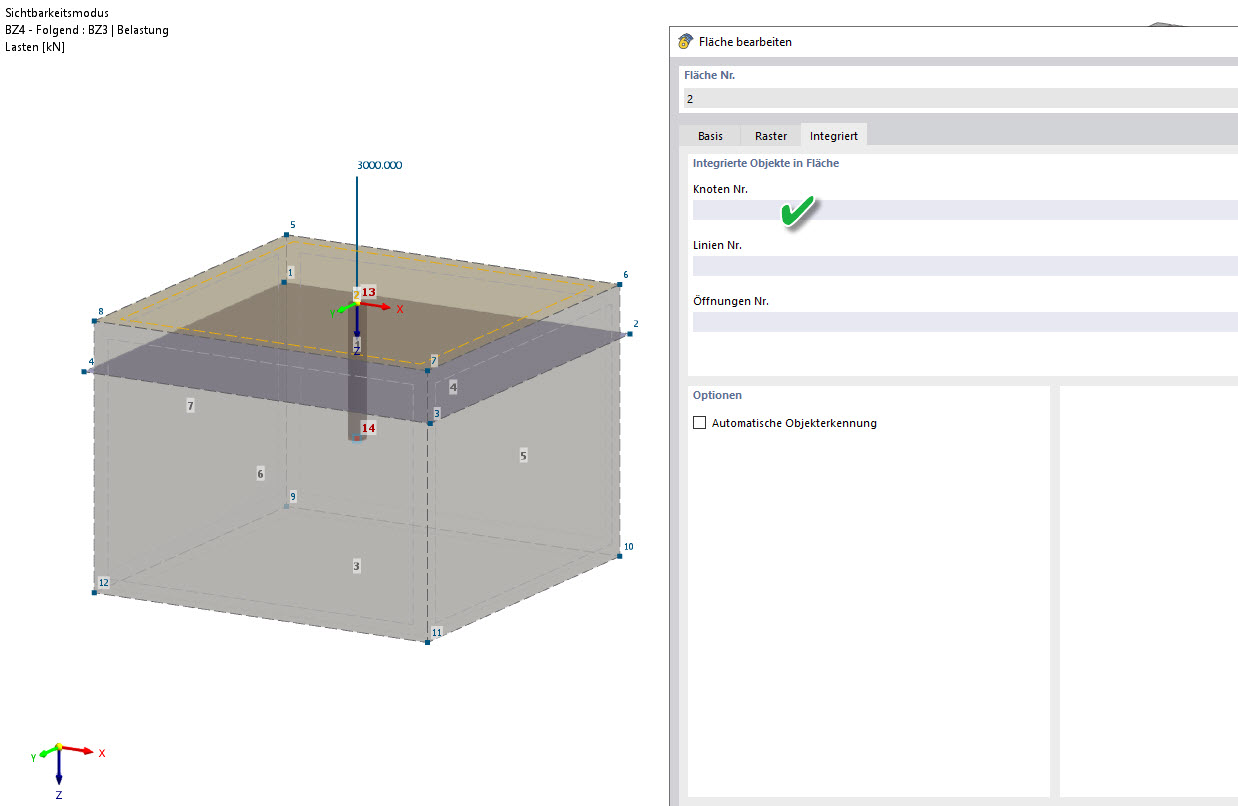

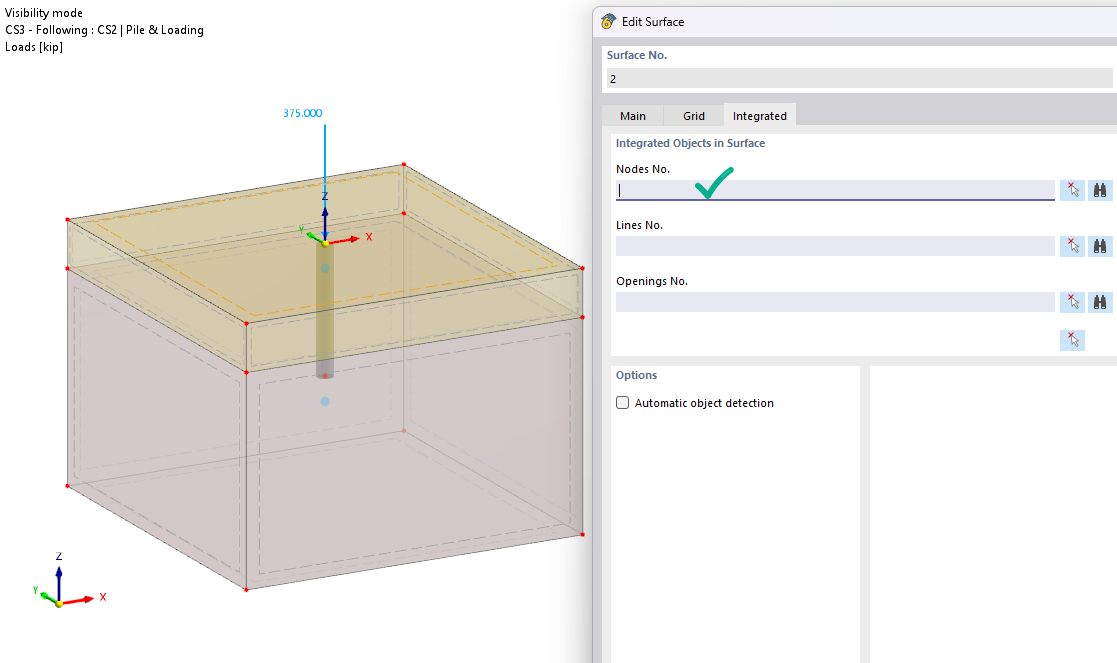

The image illustrates the "Integrated Objects" feature for the surface of a soil solid. It is shown that the node forming the pile head must not be inserted into the surface by this function. This technical display serves to explain the correct application of the feature to avoid modeling errors.
