Steel Membrane Roof in RFEM
Detail of a steel membrane roof with clearly visible supporting structures.
The image shows a steel membrane roof in an open view. The connections between the steel supporting structures and the membrane structure are clearly visible. Various patterns of membrane tension illustrate the functionality and design. This architecture is presented as innovative engineering in building design. Photo by © Savana General Trading.

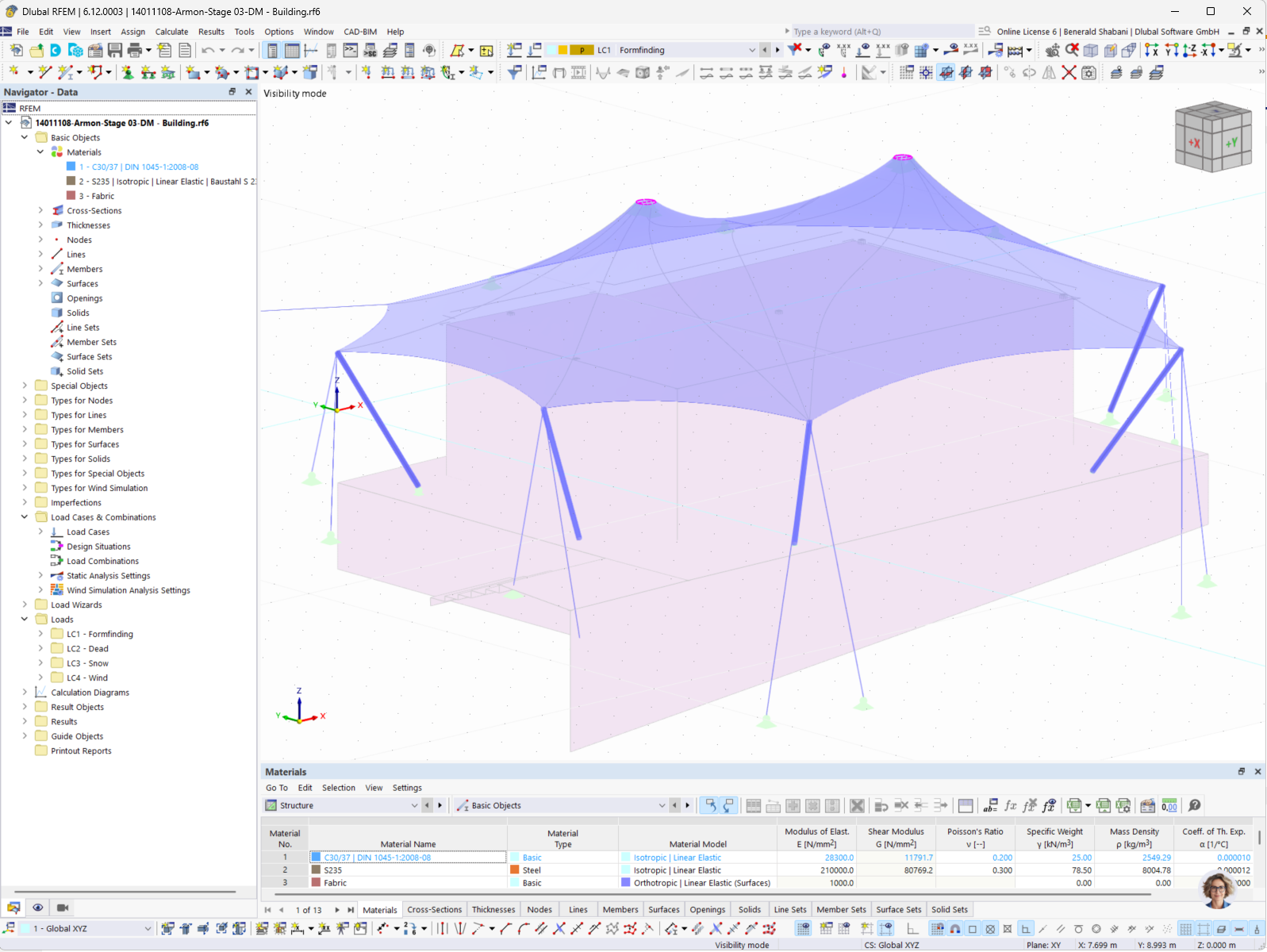

3D Model
Specifications
| Number of Nodes | 544 |
| Number of Lines | 523 |
| Number of Members | 47 |
| Number of Surfaces | 35 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.321 t |
| Dimensions (Metric) | 19.966 x 8.504 x 19.386 m |
| Dimensions (Imperial) | 65.51 x 27.9 x 63.6 feet |
