Wind Load Analysis of Membrane Structure in RFEM
Analysis of the membrane roof under wind load in RFEM with results.

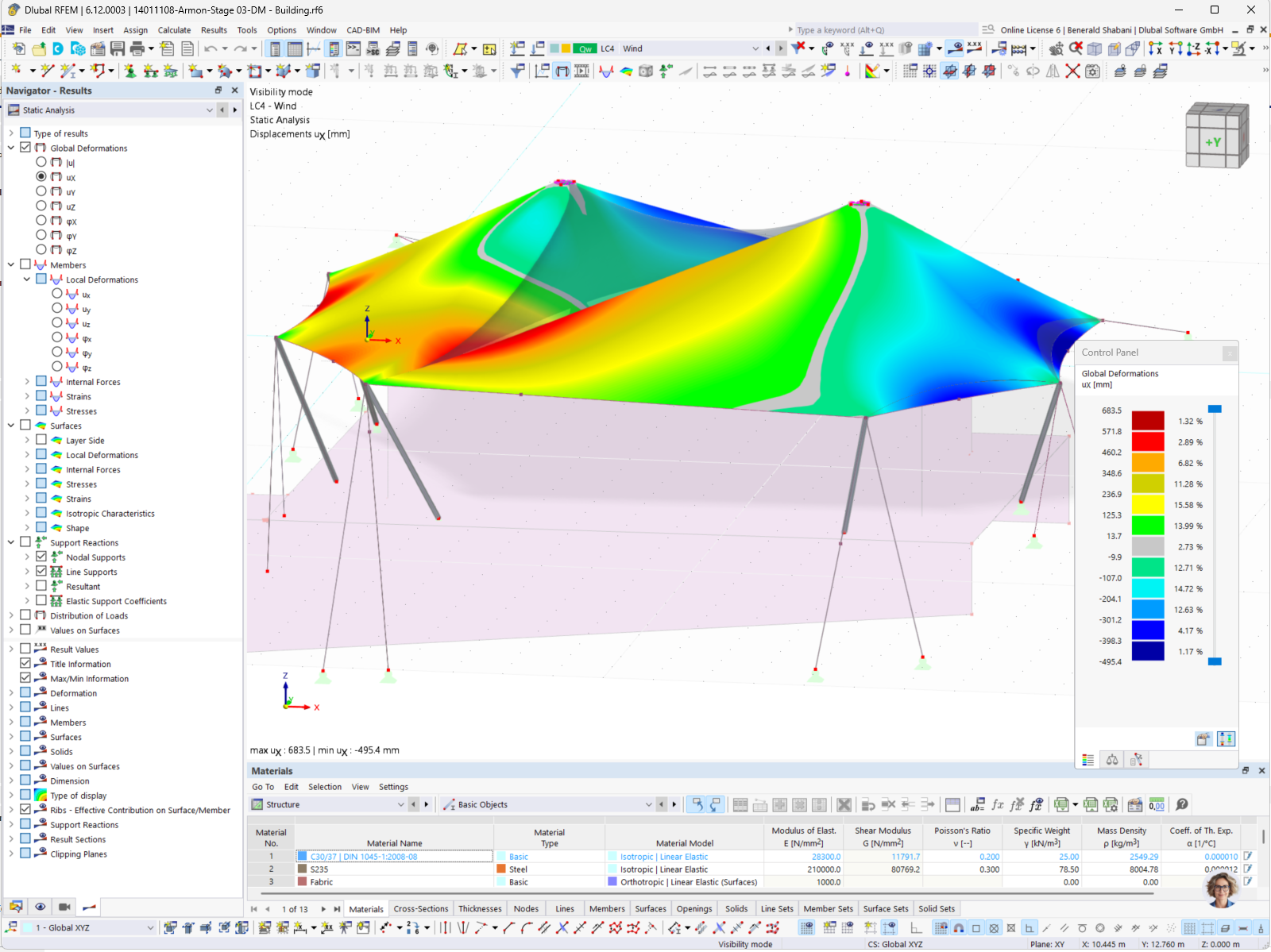

The image shows the wind analysis of a membrane roof carried out in the RFEM program. It illustrates the importance of wind load calculations on flexible structures. The membrane structure is known for its lightness and formability. The image illustrates the application of modern analysis software in the field of structural simulation. Photo by © Savana General Trading.
3D Model
Specifications
| Number of Nodes | 544 |
| Number of Lines | 523 |
| Number of Members | 47 |
| Number of Surfaces | 35 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.321 t |
| Dimensions (Metric) | 19.966 x 8.504 x 19.386 m |
| Dimensions (Imperial) | 65.51 x 27.9 x 63.6 feet |
