Truss Structure of Steel Hall

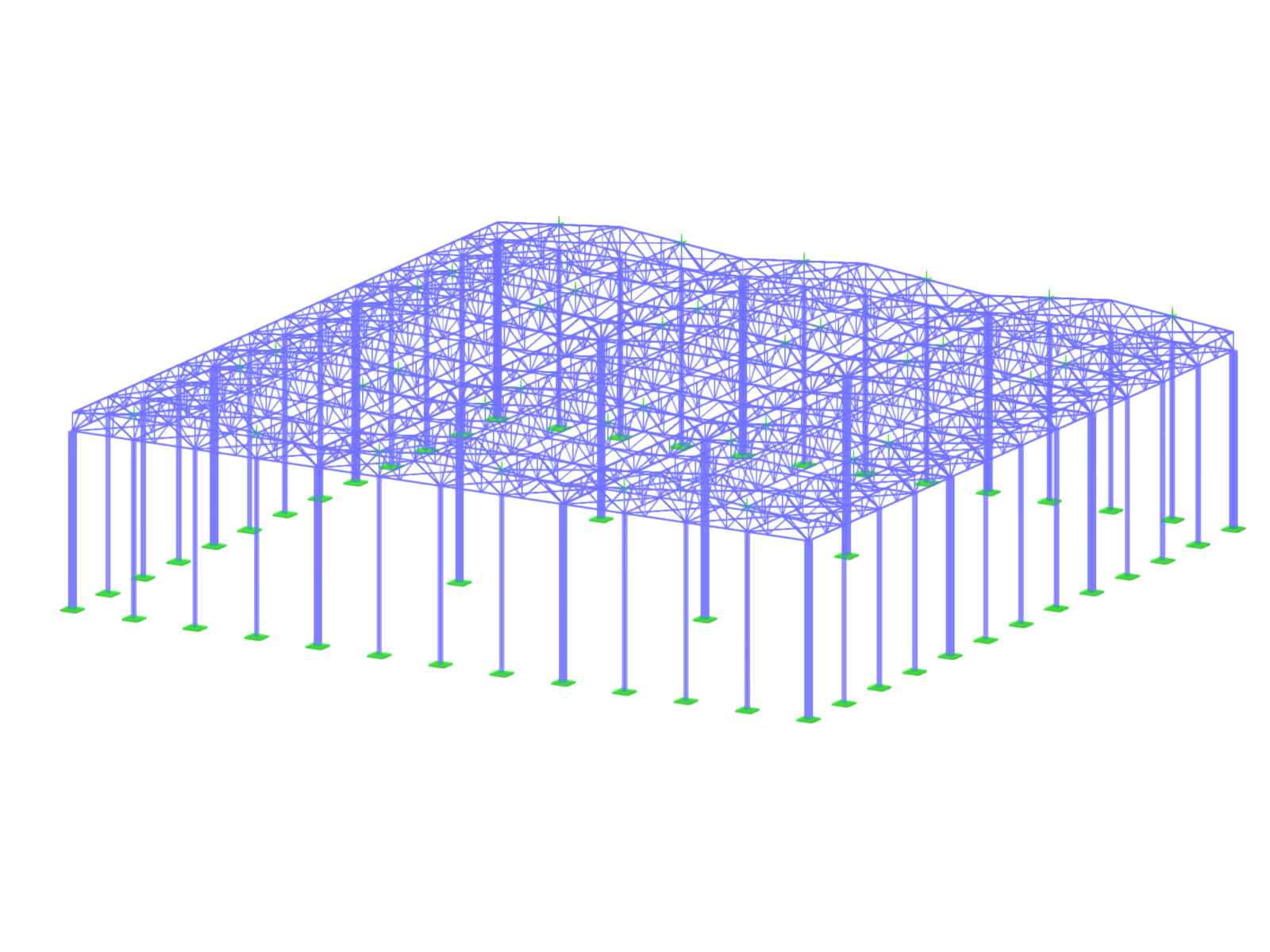

Steel hall with assembled truss girders forming a robust supporting structure.
The image shows a large steel hall in which truss girders are used as an important supporting structure. The structure consists of horizontal and vertical beams that are robustly and efficiently arranged to support the hall ceiling. This design allows for large spans with low material consumption and high stability.
Used in
3D Model
Specifications
| Number of Nodes | 1504 |
| Number of Lines | 3553 |
| Number of Members | 3553 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 363.431 t |
| Dimensions (Metric) | 90.000 x 29.772 x 90.000 m |
| Dimensions (Imperial) | 295.28 x 97.68 x 295.28 feet |
