Settings for “Compression Perpendicular to Grain”

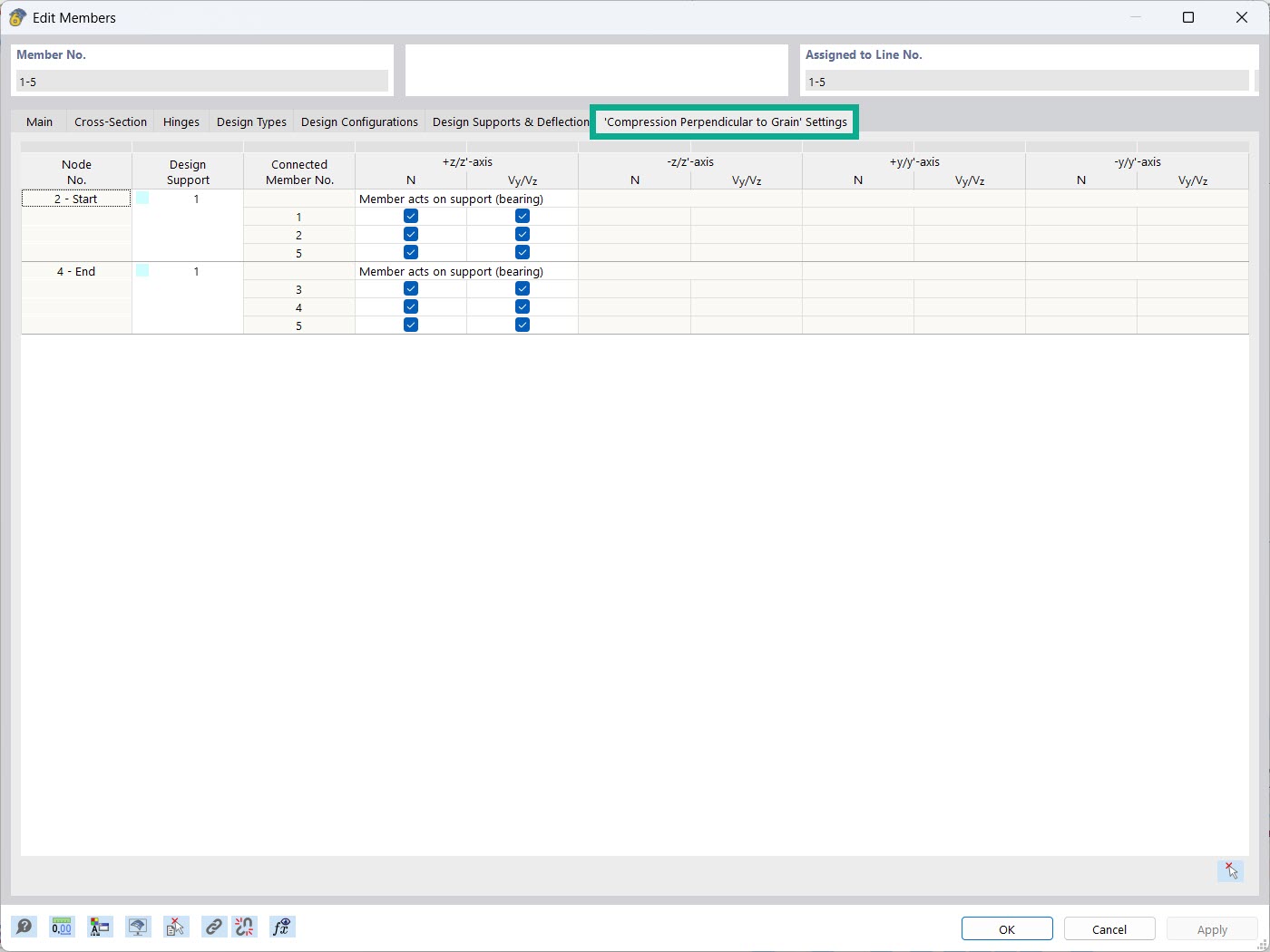

Settings for compression loads perpendicular to grain od a member. Options for considering internal forces.
The image shows the settings for design of "Compression Perpendicular to Grain" in structural engineering software. This feature allows for taking into account the internal forces of the adjacent members and is only activated after defining a design support. Only the components of the internal forces that are relevant for the design are considered.
