Specifying Surface Type, Displacement Reference, and Reference Length of Surface
Specifying Surface Type, Displacement Reference, and Reference Length of Surface
2025-12-09
060528

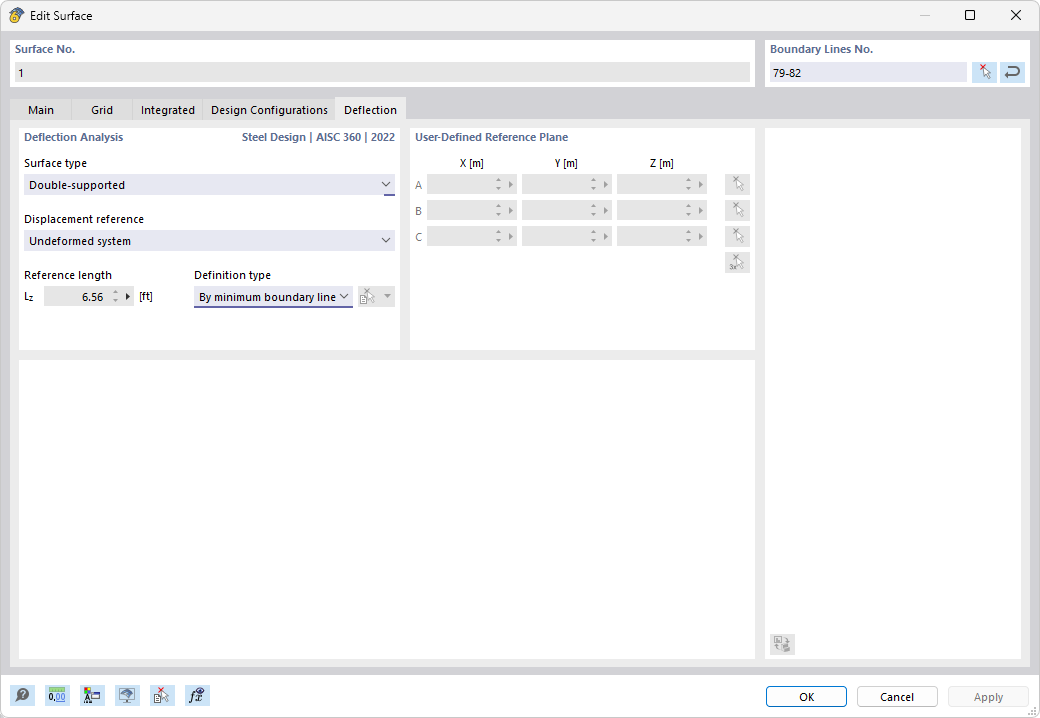

Dialog Box "Edit Surface", Tab "Deflection"

Specifying Surface Type, Displacement Reference, and Reference Length of Surface
The image shows the setting of surface type, displacement reference and reference length in steel design. These parameters are decisive for the deflection analysis of surfaces in steel structures when assessing serviceability. Various options for adapting the calculation basis are displayed.
