Modal Analysis of 6-Story CLT Building in Modena

Structural model of a 6-story CLT building in Modena, Italy, showing modal analysis results.

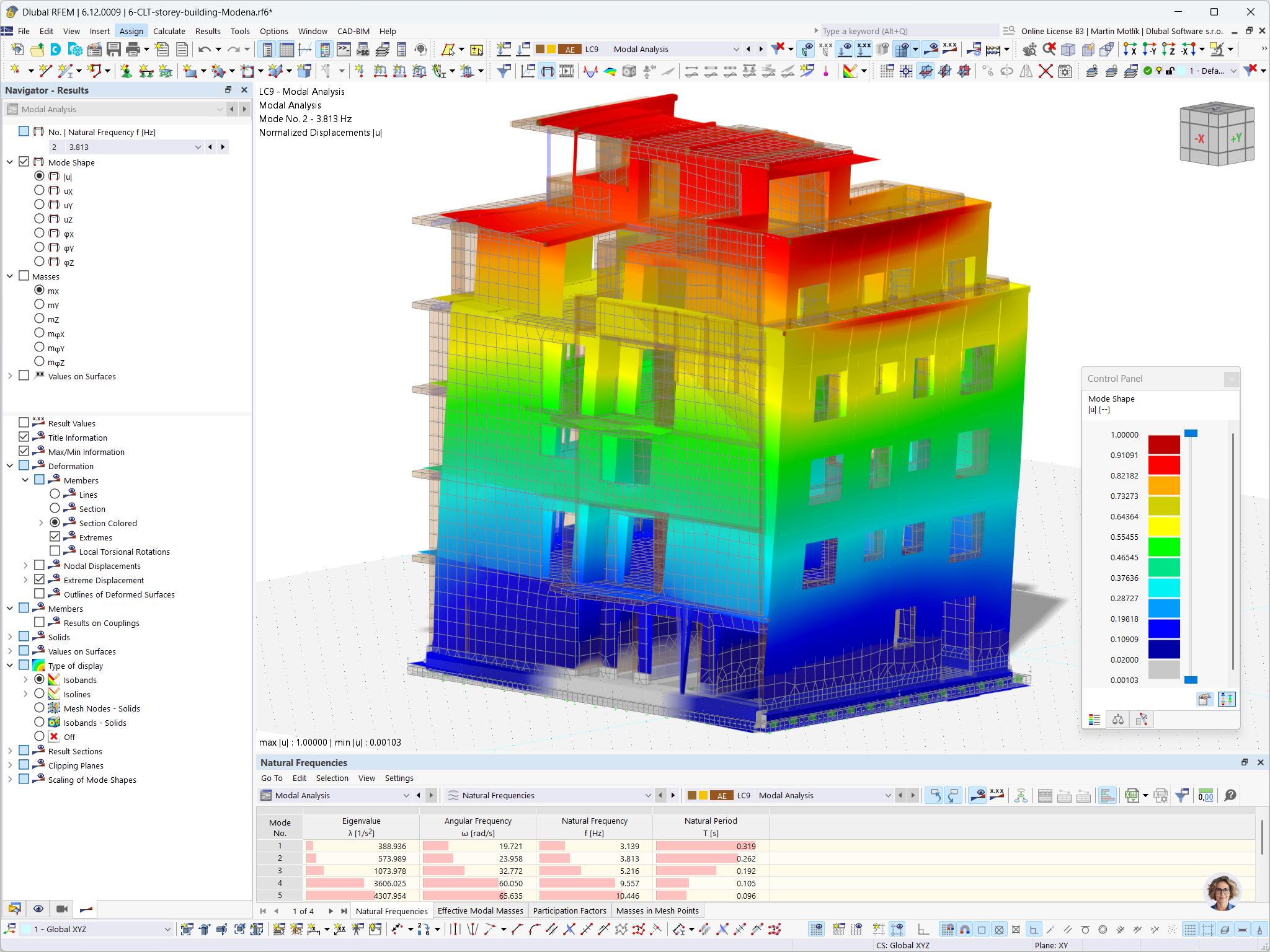

The image showcases a structural analysis model of a six-story cross-laminated timber (CLT) building located in Modena, Italy. The model is presented in the RFEM 6 software, used for advanced structural analysis. It specifically illustrates the results of a modal analysis, which is essential for assessing the dynamic response of the structure. Developed by Ergodomus.
Used in
3D Model
No Download Possible Customer Project / View Only
More About 3D Model
Specifications
Number of Nodes 733
Number of Lines 1125
Number of Members 291
Number of Surfaces 172
Number of Load Cases 48
Number of Load Combinations 44
Number of Result Combinations 15
Total Weight 413.810 tons
Dimensions (Metric) 16.083 x 17.999 x 19.175 m
Dimensions (Imperial) 52.77 x 59.05 x 62.91 feet
Program Version 5.24.02
