Modal Analysis of 6-Story CLT Building in Italy

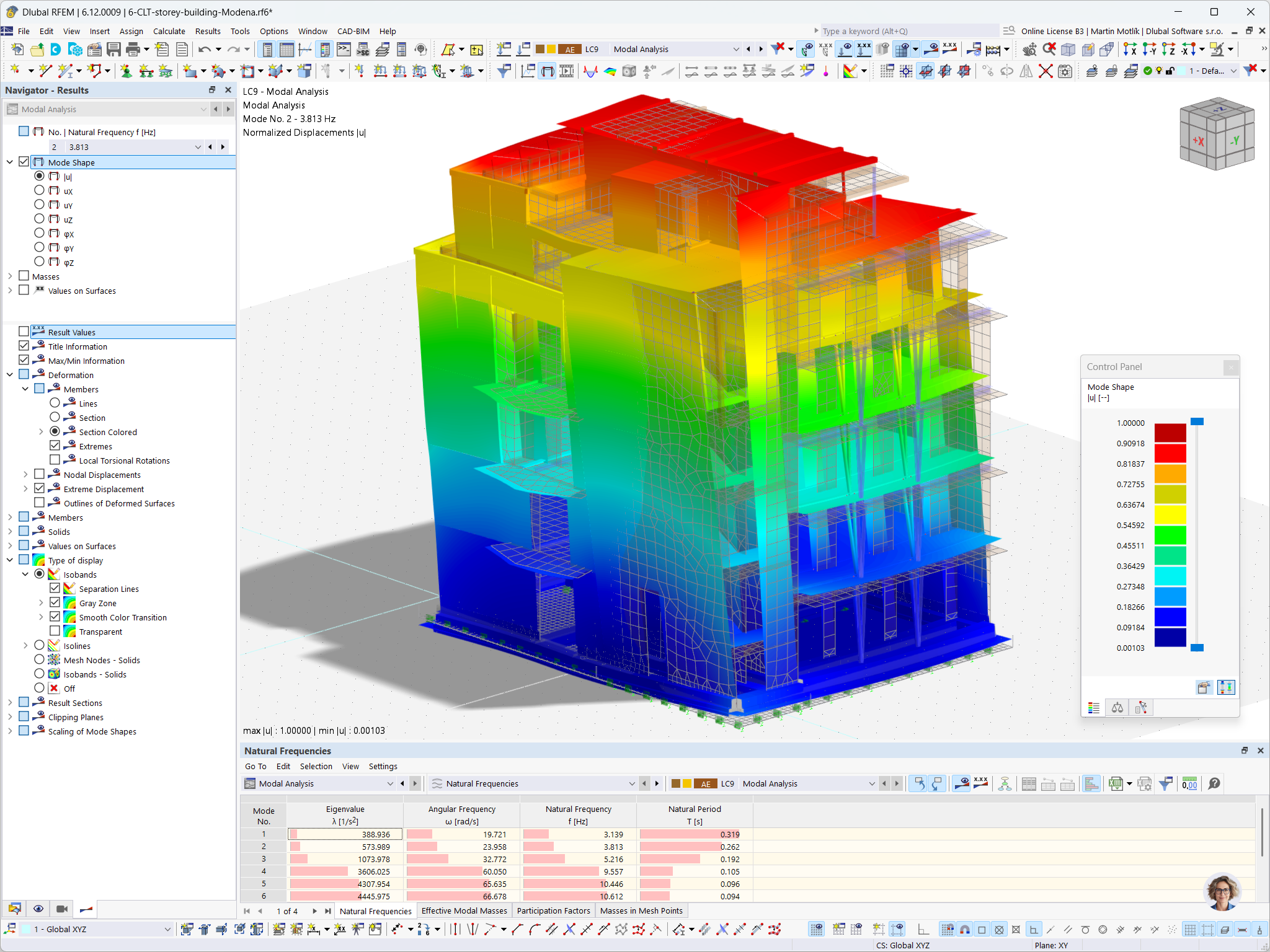

RFEM 6 model of a six-story CLT building in Modena, Italy, highlighting results from a modal analysis.
The image depicts the structural analysis model of a six-story cross-laminated timber (CLT) building located in Modena, Italy, developed using RFEM 6. The focus is on the results of a modal analysis performed on the structure. The analysis was executed by Ergodomus, providing insights into the building's dynamic behavior and natural frequencies. Modal analysis is key for understanding how structures respond to dynamic loads like wind or earthquakes. The model showcases detailed structural components aiding in comprehensive analysis.
3D Model
Specifications
| Number of Nodes | 733 |
| Number of Lines | 1125 |
| Number of Members | 291 |
| Number of Surfaces | 172 |
| Number of Load Cases | 48 |
| Number of Load Combinations | 44 |
| Number of Result Combinations | 15 |
| Total Weight | 413.810 tons |
| Dimensions (Metric) | 16.083 x 17.999 x 19.175 m |
| Dimensions (Imperial) | 52.77 x 59.05 x 62.91 feet |
| Program Version | 5.24.02 |
