6-Story Timber Building Vertical Section in Modena View

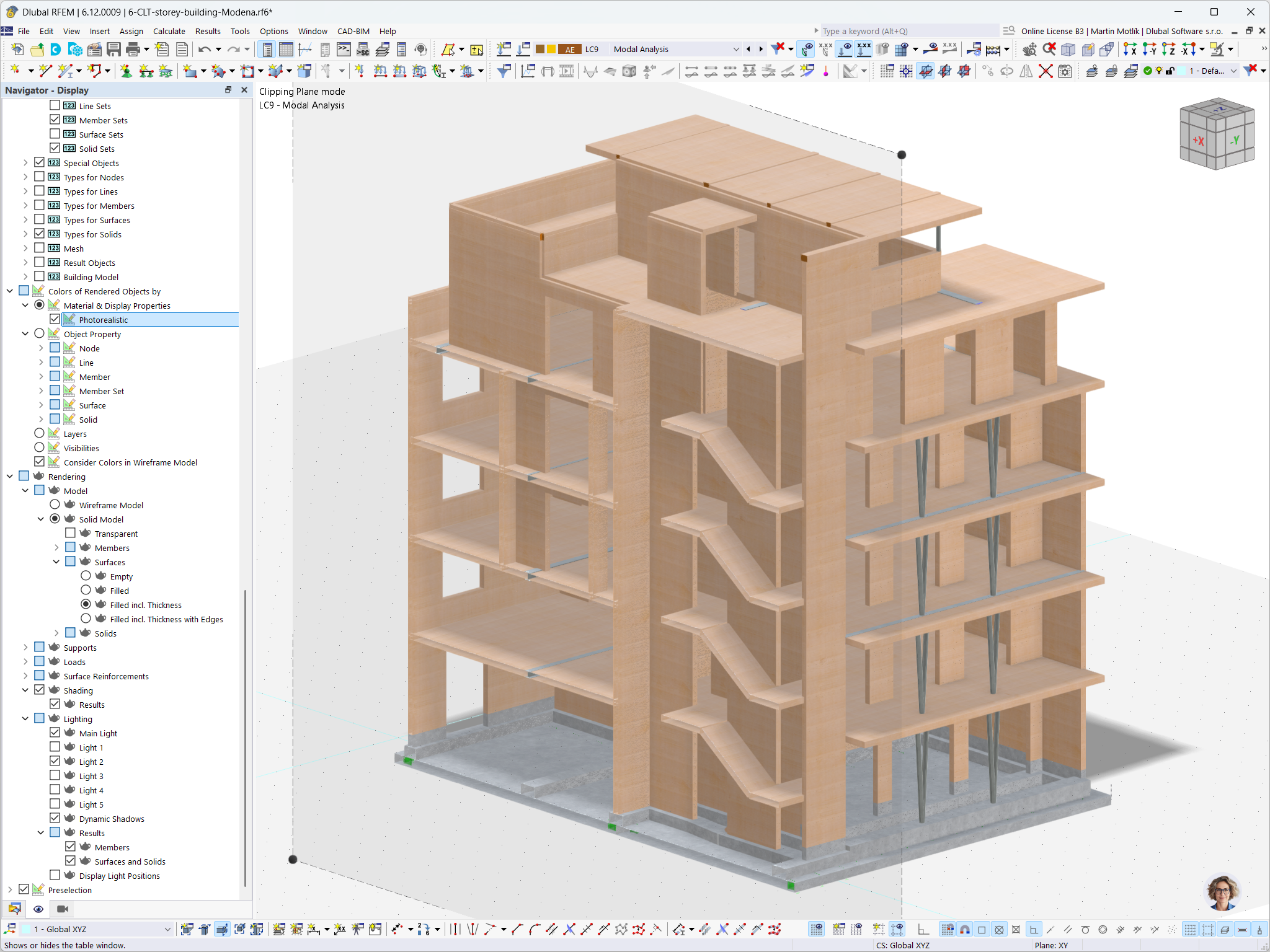

Vertical section of a six-story CLT building model in RFEM 6, designed by Ergodomus in Modena, Italy.
The image displays a vertical 3D section of a six-story building model constructed using cross-laminated timber (CLT). This detailed structural analysis model was developed by Ergodomus for a project located in Modena, Italy. The model is processed using RFEM 6 software, which is utilized for comprehensive structural simulations, including the behavior of complex multistory timber structures.
3D Model
Specifications
| Number of Nodes | 733 |
| Number of Lines | 1125 |
| Number of Members | 291 |
| Number of Surfaces | 172 |
| Number of Load Cases | 48 |
| Number of Load Combinations | 44 |
| Number of Result Combinations | 15 |
| Total Weight | 413.810 tons |
| Dimensions (Metric) | 16.083 x 17.999 x 19.175 m |
| Dimensions (Imperial) | 52.77 x 59.05 x 62.91 feet |
| Program Version | 5.24.02 |
