Sportshall Deformation Analysis Due To Wind Load

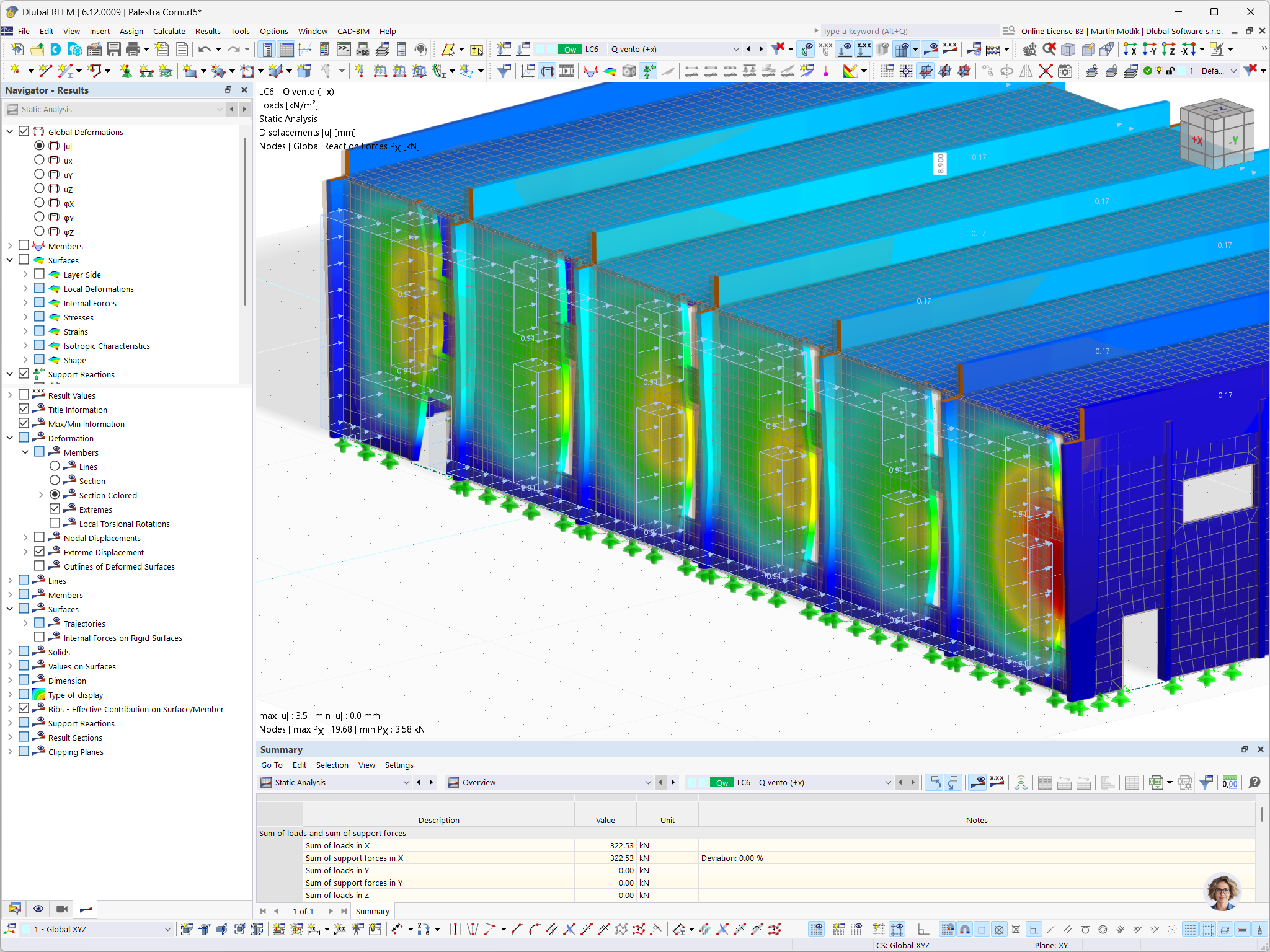

Global deformation results of the side wall affected by wind load in Modena sportshall model in RFEM 6.
The image illustrates the analysis of global deformation on the side wall of the Sportshall “Corni” in Modena, Italy, due to wind load. This structural assessment was performed using the RFEM 6 software. The model was developed by Ergodomus.
3D Model
Specifications
| Number of Nodes | 299 |
| Number of Lines | 417 |
| Number of Members | 219 |
| Number of Surfaces | 5 |
| Number of Load Cases | 37 |
| Number of Result Combinations | 105 |
| Total Weight | 108.886 tons |
| Dimensions (Metric) | 24.401 x 38.401 x 8.900 m |
| Dimensions (Imperial) | 80.06 x 125.99 x 29.2 feet |
| Program Version | 5.24.02 |
