RFEM Model of Glued-Laminated Timber Roof Structure

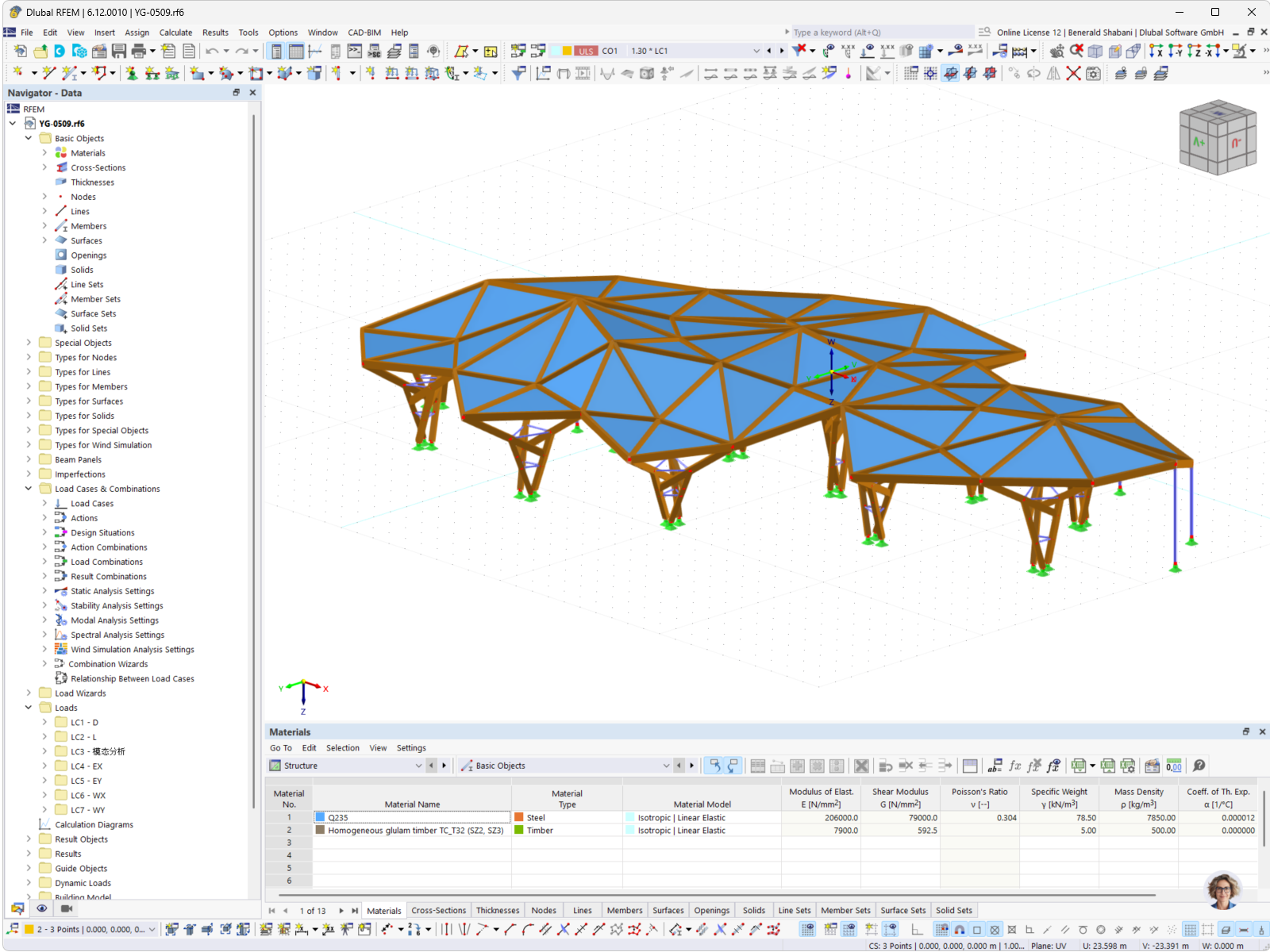

RFEM model of a precisely designed glulam roof structure with complex geometry.
The RFEM model shows a detailed roof structure made of glued-laminated timber with a sophisticated geometric design. The use of glued-laminated timber allows for high stability and flexibility in the design of the roof structure. RFEM is a software program that allows for comprehensive calculations and analyses of Building Models in the construction industry. The roof structure model is an example of the use of computer-aided design for complex structures. Photo by ©Nanjing Tech University.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 216 |
| Number of Lines | 274 |
| Number of Members | 274 |
| Number of Surfaces | 59 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 24.876 t |
| Dimensions (Metric) | 40.556 x 10.845 x 23.331 m |
| Dimensions (Imperial) | 133.06 x 35.58 x 76.55 feet |
