Deformation of Timber Structure in RFEM

Visualization of the deformation of a timber structure in RFEM, provided by Nanjing Tech University. This detailed view shows potential weak points and assists in structural verification.

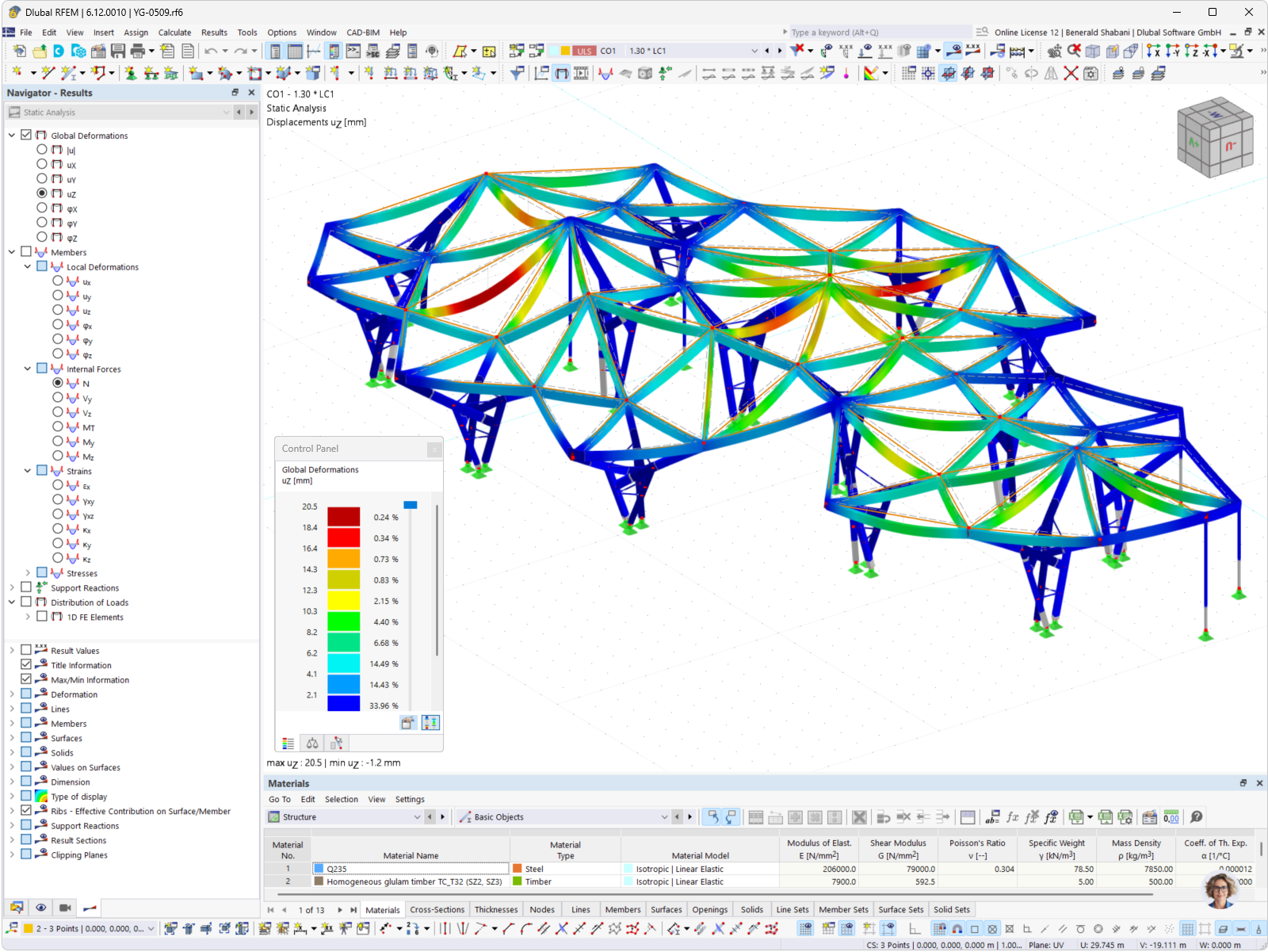

This image shows the deformation pattern of a timber structure, created using RFEM software. Such visualizations are crucial for understanding load distribution and potential weak points within the structure. A detailed display of the deformation states is provided, which is important for structural verification and the design of reinforcement measures. Photo: ©Nanjing Tech University.
Used in
3D Model
No Download Possible Customer Project / View Only
More About 3D Model
Specifications
Number of Nodes 216
Number of Lines 274
Number of Members 274
Number of Surfaces 59
Number of Solids 0
Number of Load Cases 7
Number of Load Combinations 1
Number of Result Combinations 0
Total Weight 24.876 t
Dimensions (Metric) 40.556 x 10.845 x 23.331 m
Dimensions (Imperial) 133.06 x 35.58 x 76.55 feet
