Steel Column Base Connection with Stiffeners and Anchoring

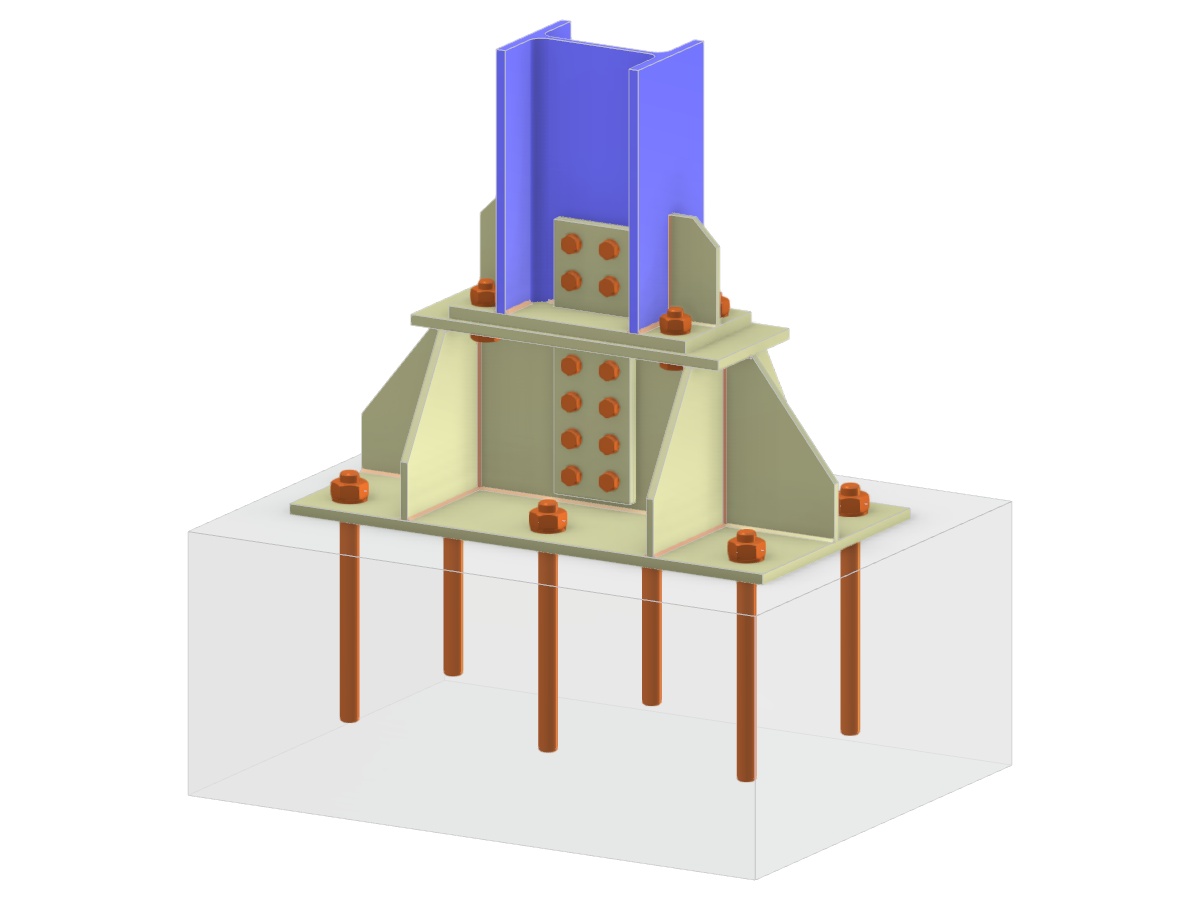

Detailed view of a steel column base connection featuring a base plate, I-section, stiffeners, and anchoring elements for structural stability.
The image shows a steel column base connection highlighting key structural components such as a base plate, I-section, stiffeners, and ribs. The base plate is connected to the I-section with additional plate-to-plate connections for enhanced stability. Stiffeners and ribs are visible, providing extra reinforcement to the base structure. Anchoring elements are embedded in the concrete foundation, securing the structure firmly.
Used in
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.101 tons |
| Dimensions (Metric) | 0,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
