RFEM Model of Steel Drying Tower

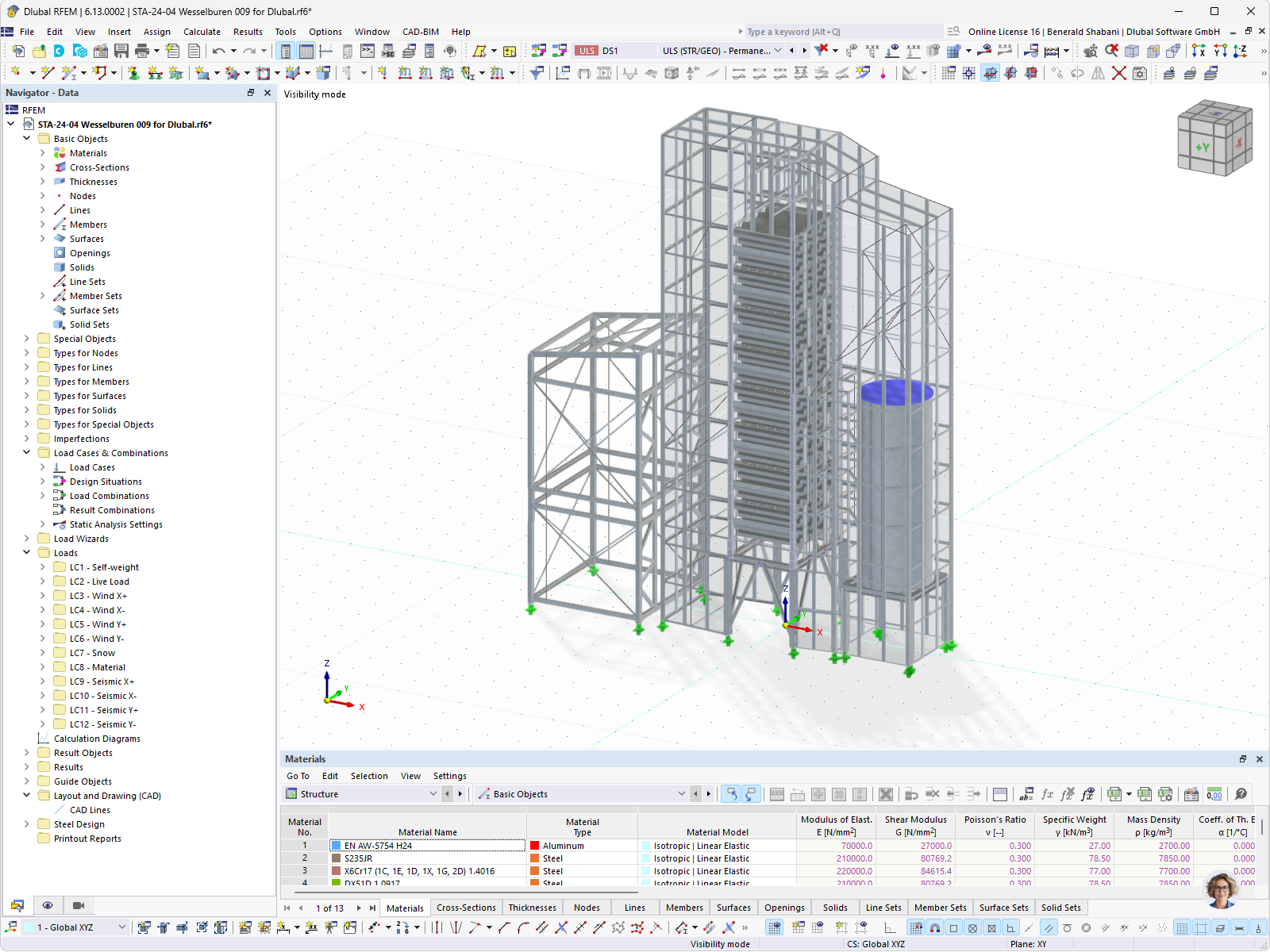

RFEM model of a steel drying tower. Visualized structure. © GMBS Design Kft.
The image shows an RFEM model of a drying tower designed with a complex steel structure. Various steel elements and connection details are present, representing the functionality and stability of the structure. The model serves as a visual display of the structural composition and architecture. This model was created by. Photo by GMBS Design Kft. ©
3D Model
Specifications
| Number of Nodes | 1114 |
| Number of Lines | 1326 |
| Number of Members | 1080 |
| Number of Surfaces | 184 |
| Number of Solids | 0 |
| Number of Load Cases | 12 |
| Number of Load Combinations | 21 |
| Number of Result Combinations | 0 |
| Total Weight | 5.054 t |
| Dimensions (Metric) | 11.863 x 14.576 x 3.665 m |
| Dimensions (Imperial) | 38.92 x 47.82 x 12.02 feet |
