Timber Connection in Face Staggered Joint

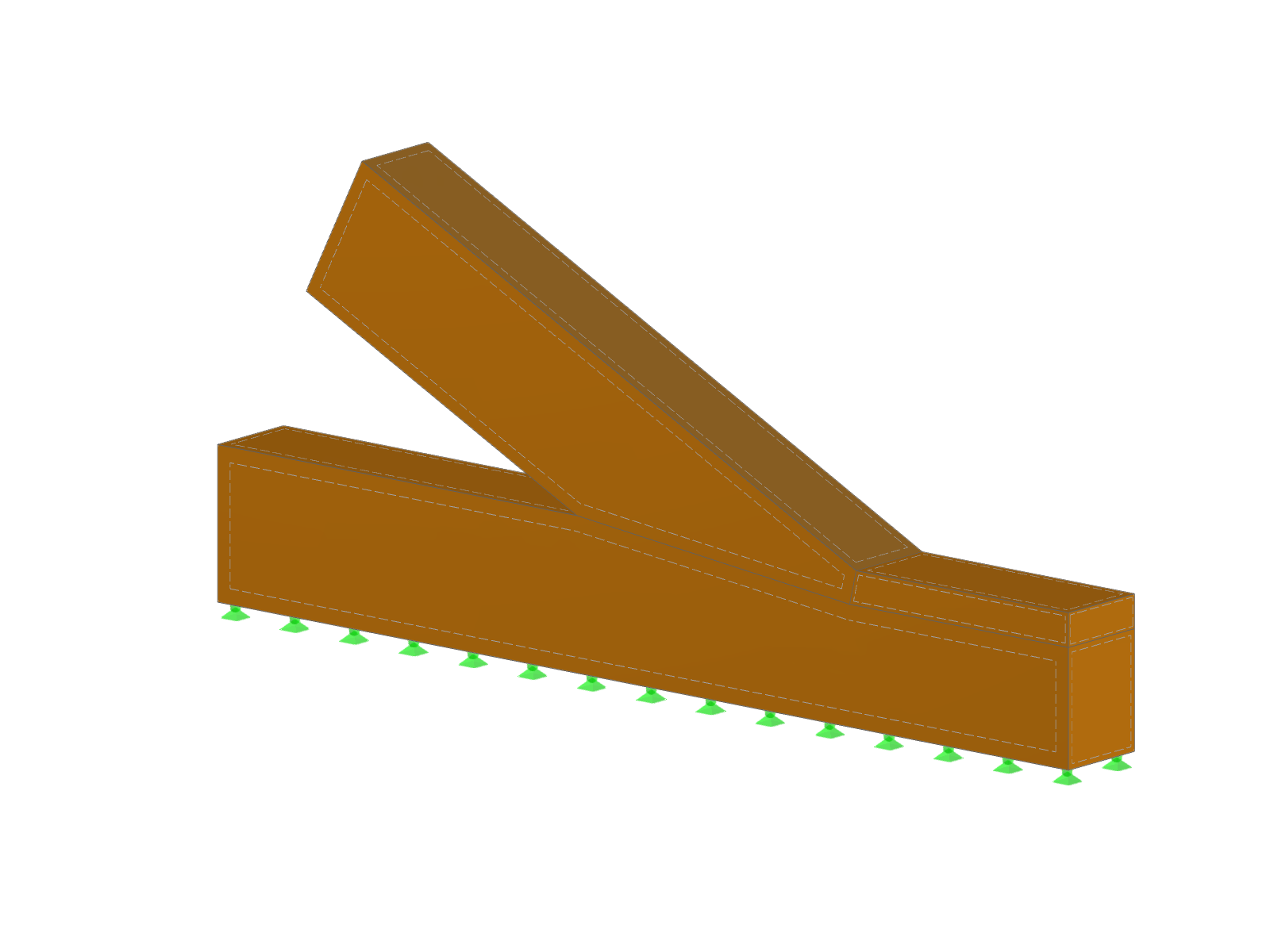

Detailed view of a timber face staggered joint with true-to-scale display.
The image shows a detailed display of a timber face staggered joint. The timber connection is shown to scale to illustrate the structure and fasteners.
Used in
3D Model
Specifications
| Number of Nodes | 26 |
| Number of Lines | 41 |
| Number of Members | 0 |
| Number of Surfaces | 20 |
| Number of Solids | 3 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 0.029 t |
| Dimensions (Metric) | 1.500 x 0.656 x 0.140 m |
| Dimensions (Imperial) | 4.92 x 2.15 x 0.46 feet |
