Column Base with Anchorage

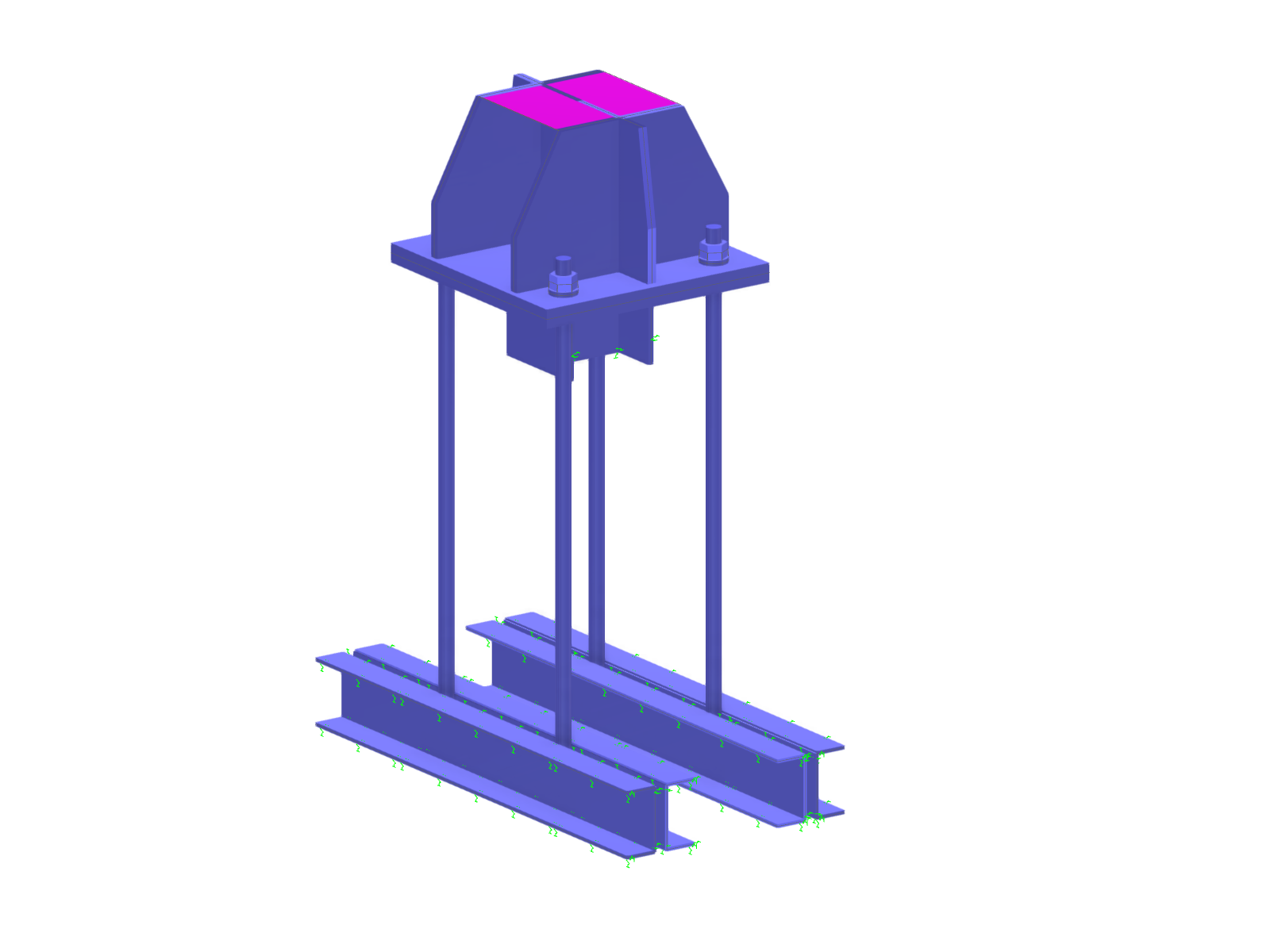

Image of a column base with an anchorage for structural stability.
The image shows a column base that is rigidly anchored to the ground. This structural element is crucial for structural stability and the transfer of vertical loads. The anchorage ensures a secure connection between the structural components and prevents movement when the components are subjected to a load.
Used in
3D Model
Specifications
| Number of Nodes | 342 |
| Number of Lines | 461 |
| Number of Members | 136 |
| Number of Surfaces | 67 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 31 |
| Number of Result Combinations | 0 |
| Total Weight | 0.115 t |
| Dimensions (Metric) | 0.800 x 1.046 x 0.400 m |
| Dimensions (Imperial) | 2.62 x 3.43 x 1.31 feet |
