Button "Result Diagrams in Section" in Table Toolbar

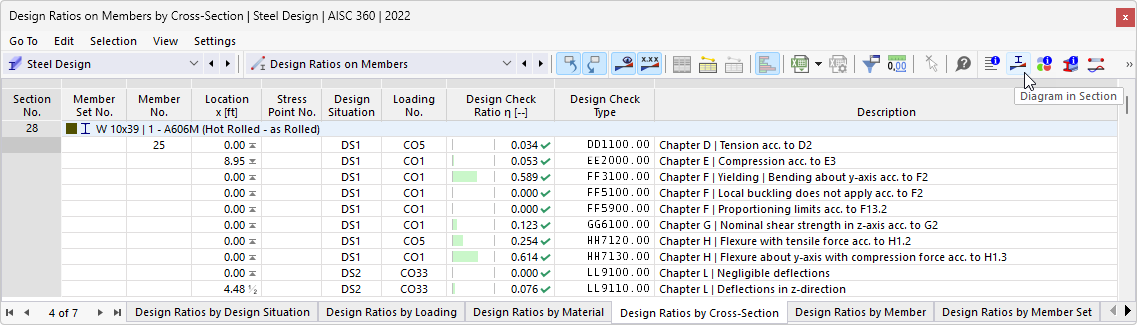

The “Result Diagrams in Section” dialog box allows detailed analysis of cross-section data for member results. A button in the table toolbar opens this dialog box to check design results. The feature helps engineers to accurately examine material stress in the cross-section.
