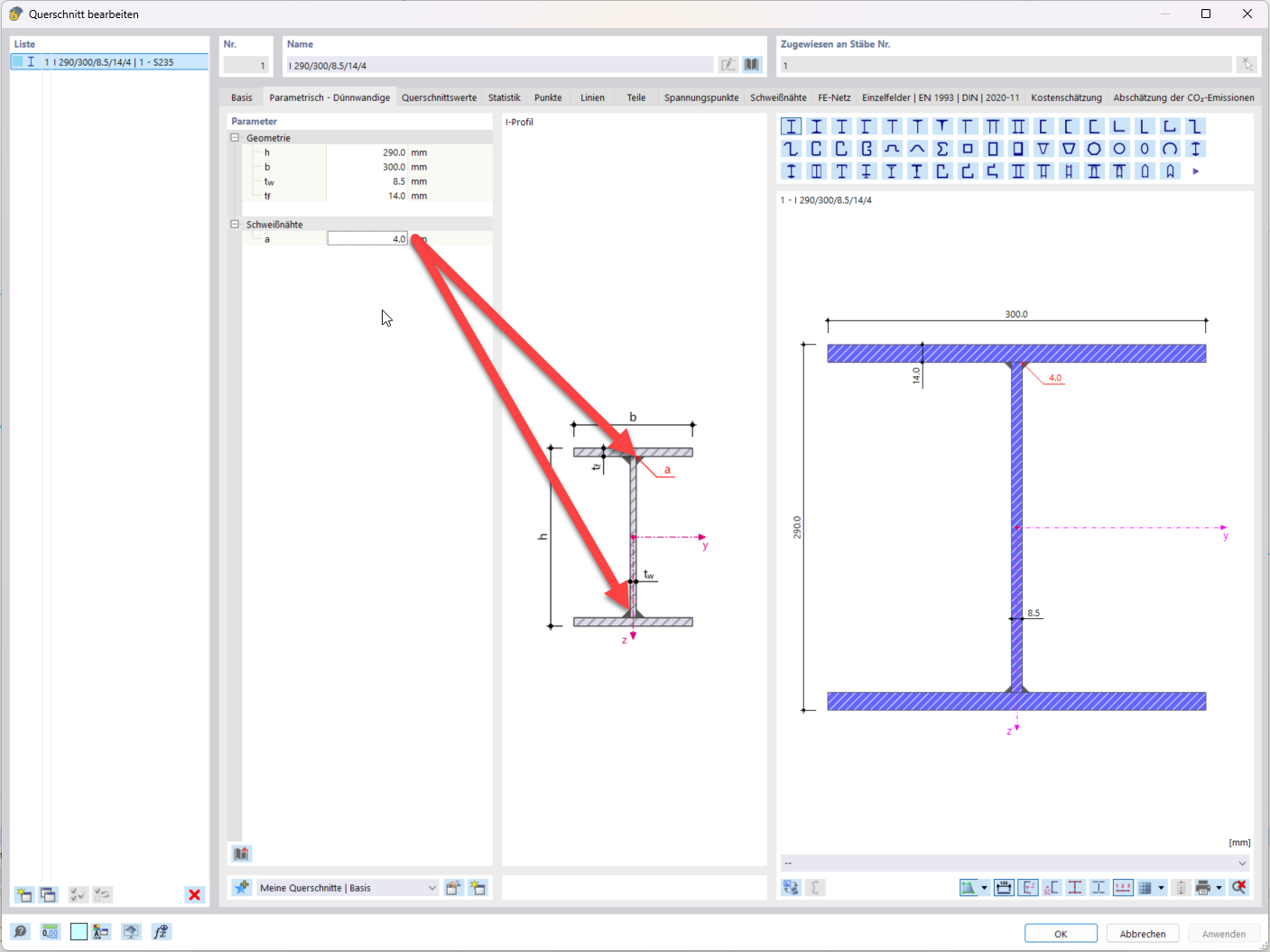

Dialog Box of Cross-Section Definition with Weld Thickness

The cross-section definition dialog box shows the welded cross-section with the weld thickness highlighted.

The cross-section definition dialog box shows the selection of a welded cross-section. The cross-section properties for weld thickness are highlighted by an arrow. The defined cross-section is displayed on the right. The image illustrates how cross-section properties are handled within the software.
