Geotechnical Design in Navigator for Concrete Foundation in RFEM 6

Geotechnical design in the Navigator, including selection of ultimate and serviceability limit state design checks for concrete foundations

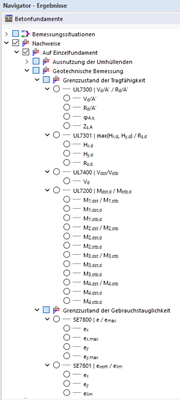

The image shows the Results navigator for concrete foundations in RFEM 6 with the “Geotechnical Design” section open. It displays the available design checks for the ultimate limit state (for example, ground failure, sliding, uplift limit state, and static equilibrium) as well as for the serviceability limit state (eccentric loading and highly eccentric loads in core). For each design check, individual result variables can be specifically selected in the navigator for graphical display.
