Design Ratio of Ground Failure Design for Concrete Foundations in RFEM 6
Using the ground failure design as an isoband beneath a single foundation in RFEM 6

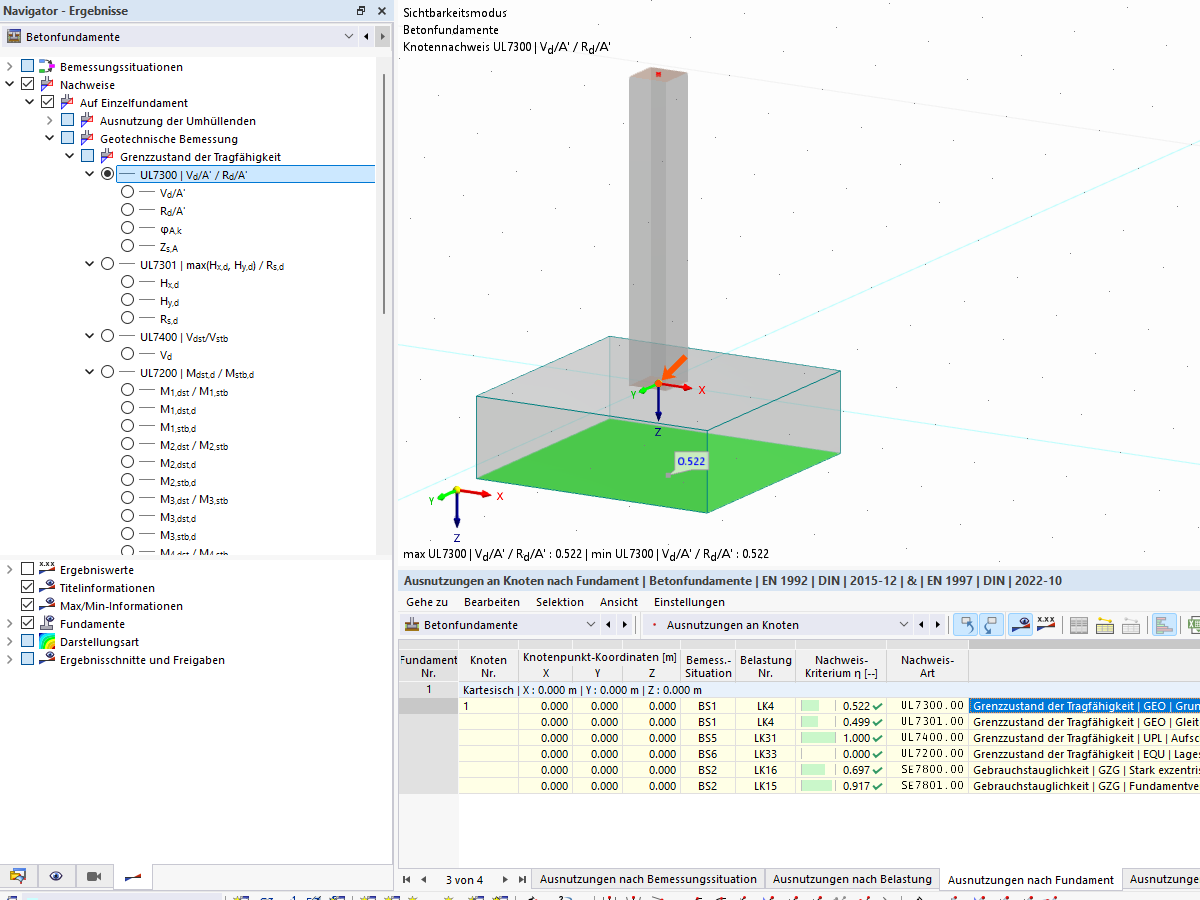

The image shows a graphical display of the ground failure design (UL7300) for a single foundation in RFEM 6. The results are displayed as an isoband beneath the foundation plate and illustrate the subsoil design ratio. In addition, the corresponding design results are listed in tables at the bottom, allowing for a direct comparison of the graphical and numerical evaluations.
