Sliding Resistance Design Ratio for Concrete Foundations in RFEM 6
Design ratio for the sliding design under a single foundation in RFEM 6

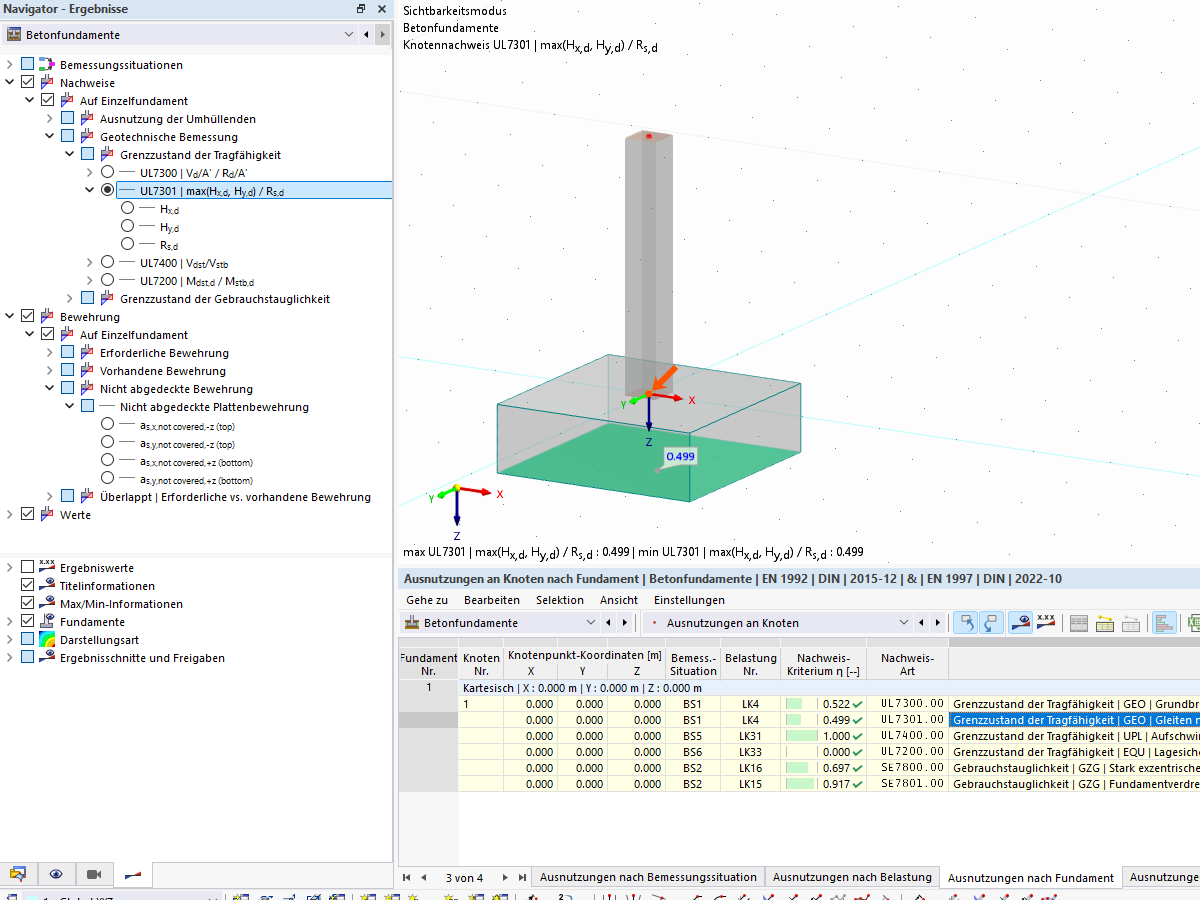

The image shows a graphical display of the design ratio for the sliding resistance design (UL7301) for a single foundation in RFEM 6. The corresponding design check is selected in the Navigator. The isoband displayed below the foundation plate visualizes the design ratio resulting from horizontal actions. The design checks are based on the ratio of the applied horizontal forces to the available sliding resistance. The corresponding results are also displayed in tables in the lower section.
