Distinction in the Rendering of Members with Variable Cross-Sections for Interpolatable and Non-Interpolatable Cross-Sections

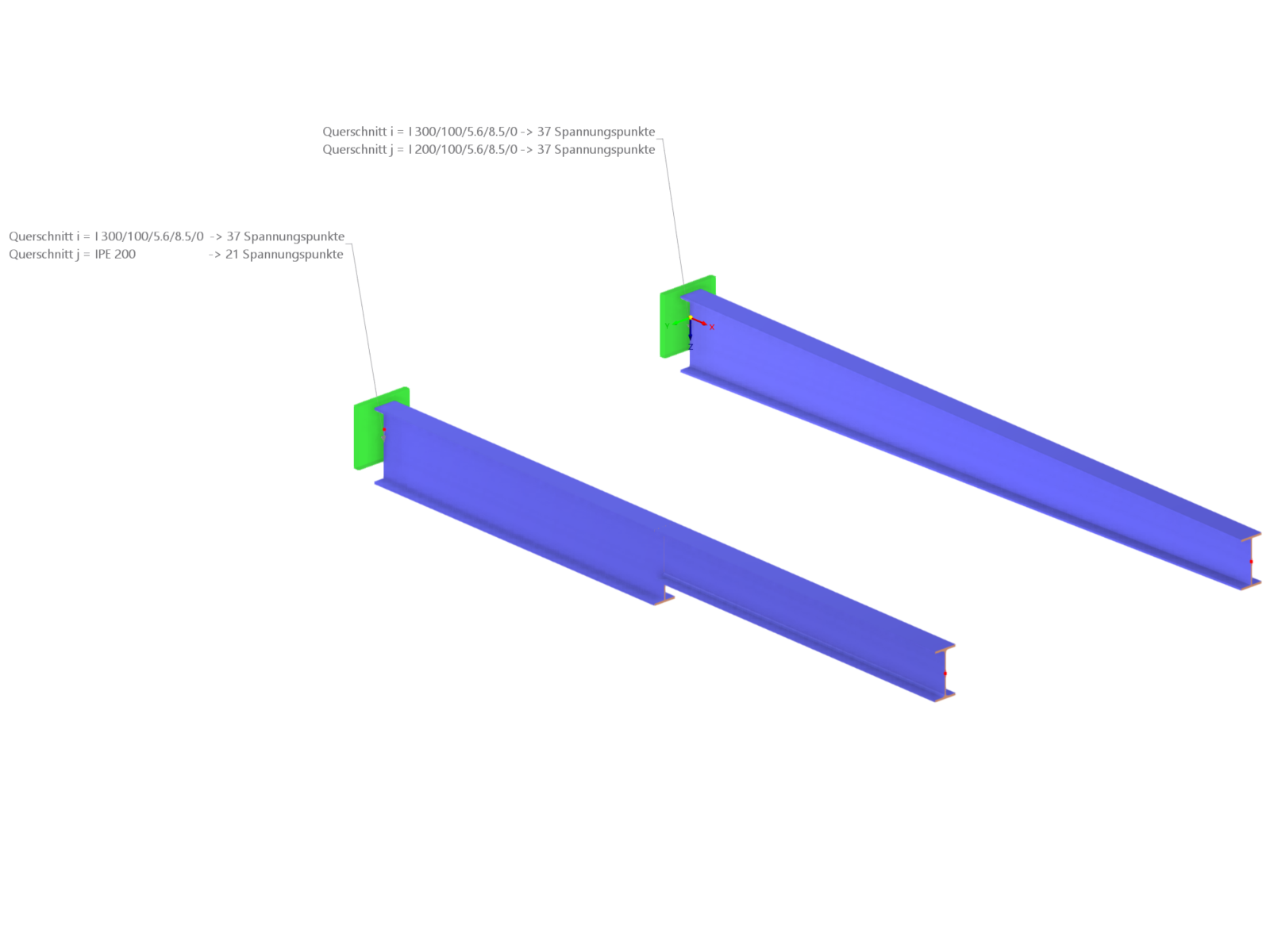

Haunched beams in the design comparison in RFEM 6, different cross-section profile visible.
The image shows the comparison of variants between two haunched beams in RFEM 6. The beams contain comments describing the selected cross-sections. The beam on the right shows a linear cross-section progression, as its cross-sections are interpolable. In the beam on the left, there is a visible discontinuity in the cross-section, indicating non-interpolable cross-sections.
