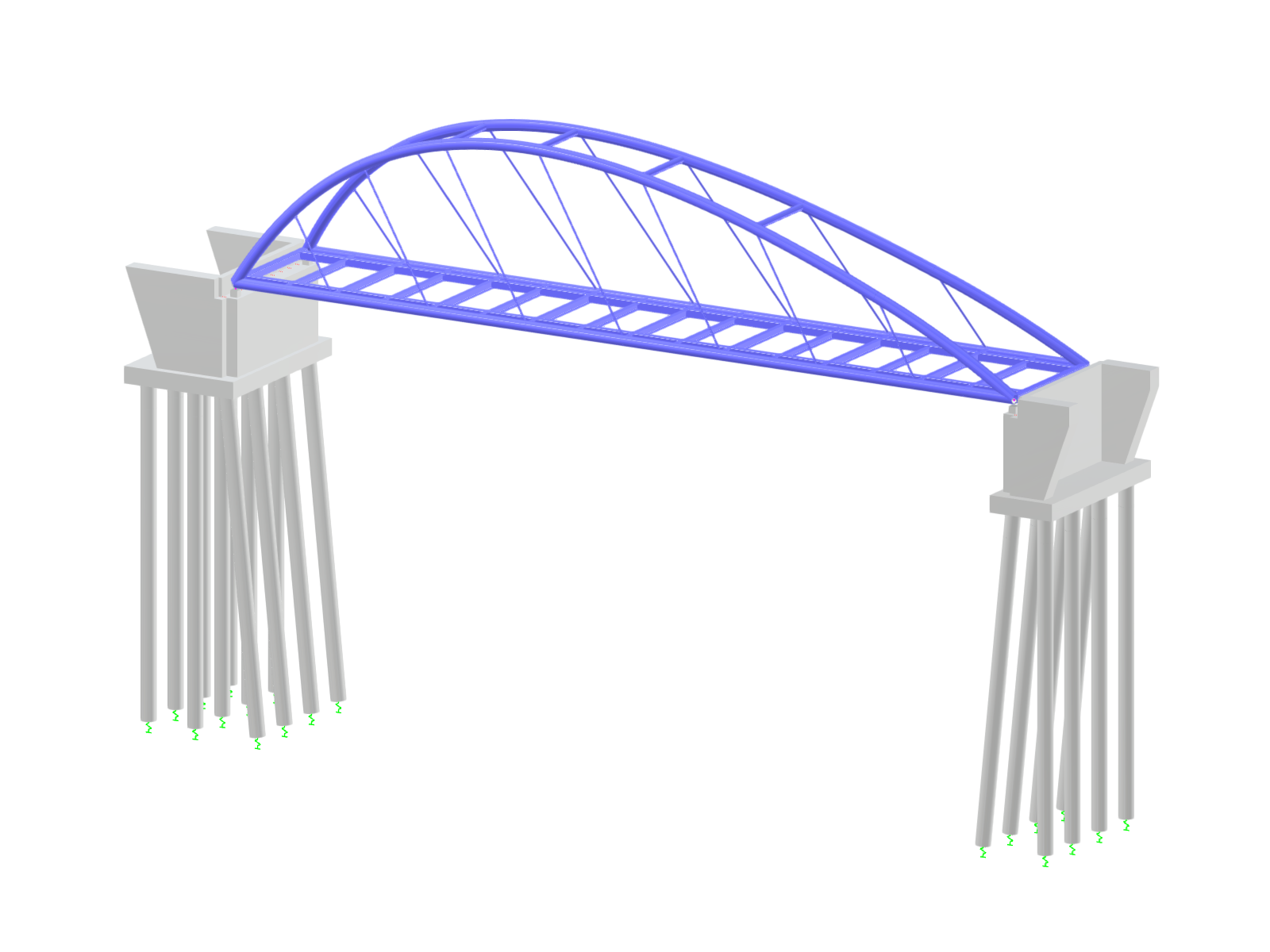

Inclined Arch Bridge on Concrete Abutment
An inclined arch bridge resting on massive concrete abutments in a natural setting.
The arch bridge is distinguished by its sloping, modern design, which rests on massive concrete abutments. It is nestled in a natural setting and captivates with its architectural elegance. There is no additional information regarding the image’s creators or copyright.
3D Model
Specifications
| Number of Nodes | 224 |
| Number of Lines | 256 |
| Number of Members | 198 |
| Number of Surfaces | 16 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 12 |
| Number of Result Combinations | 0 |
| Total Weight | 1628.993 t |
| Dimensions (Metric) | 60.636 x 35.545 x 11.000 m |
| Dimensions (Imperial) | 198.94 x 116.62 x 36.09 feet |
