Dialog Box "Edit Surface", Tab "Deflection"

Specifying the surface type, displacement reference, and reference length of a surface

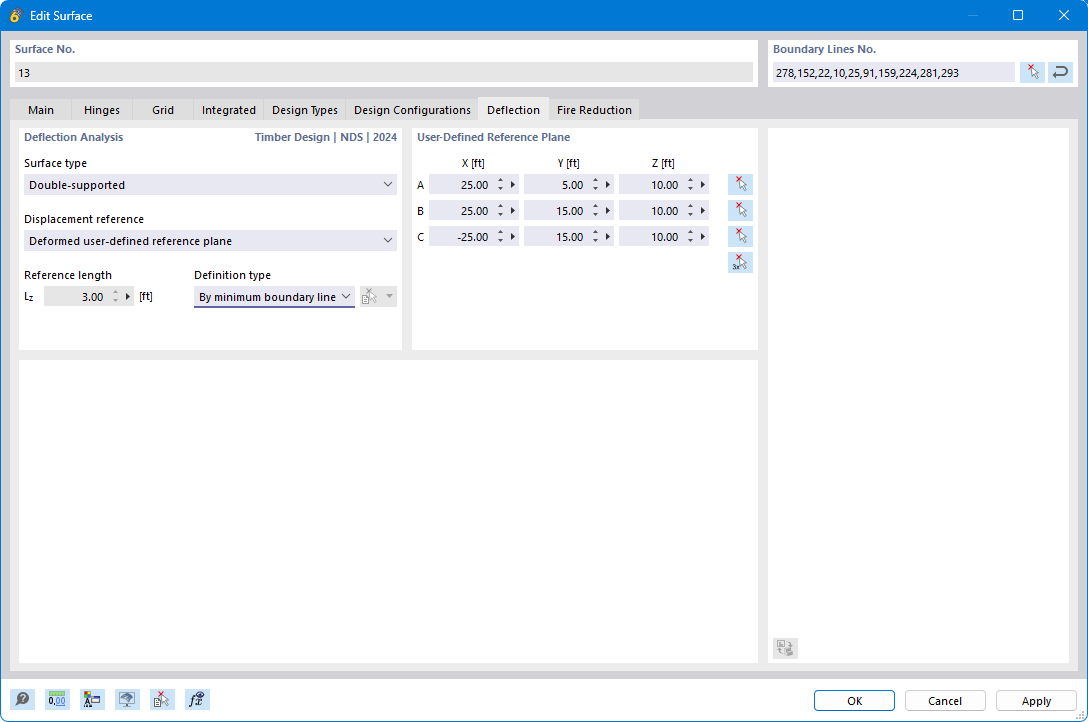

The image shows how to define the surface type, displacement reference, and reference length of a surface in order to perform the deflection analysis for timber design and serviceability. These settings are critical for correctly evaluating the deformation characteristics of the surface and ensuring that structural requirements are met.
