Wind Analysis of Membrane Structure in RWIND
Computer simulation of wind flow around a structure with membrane surfaces. Models and displays to support structural analysis.

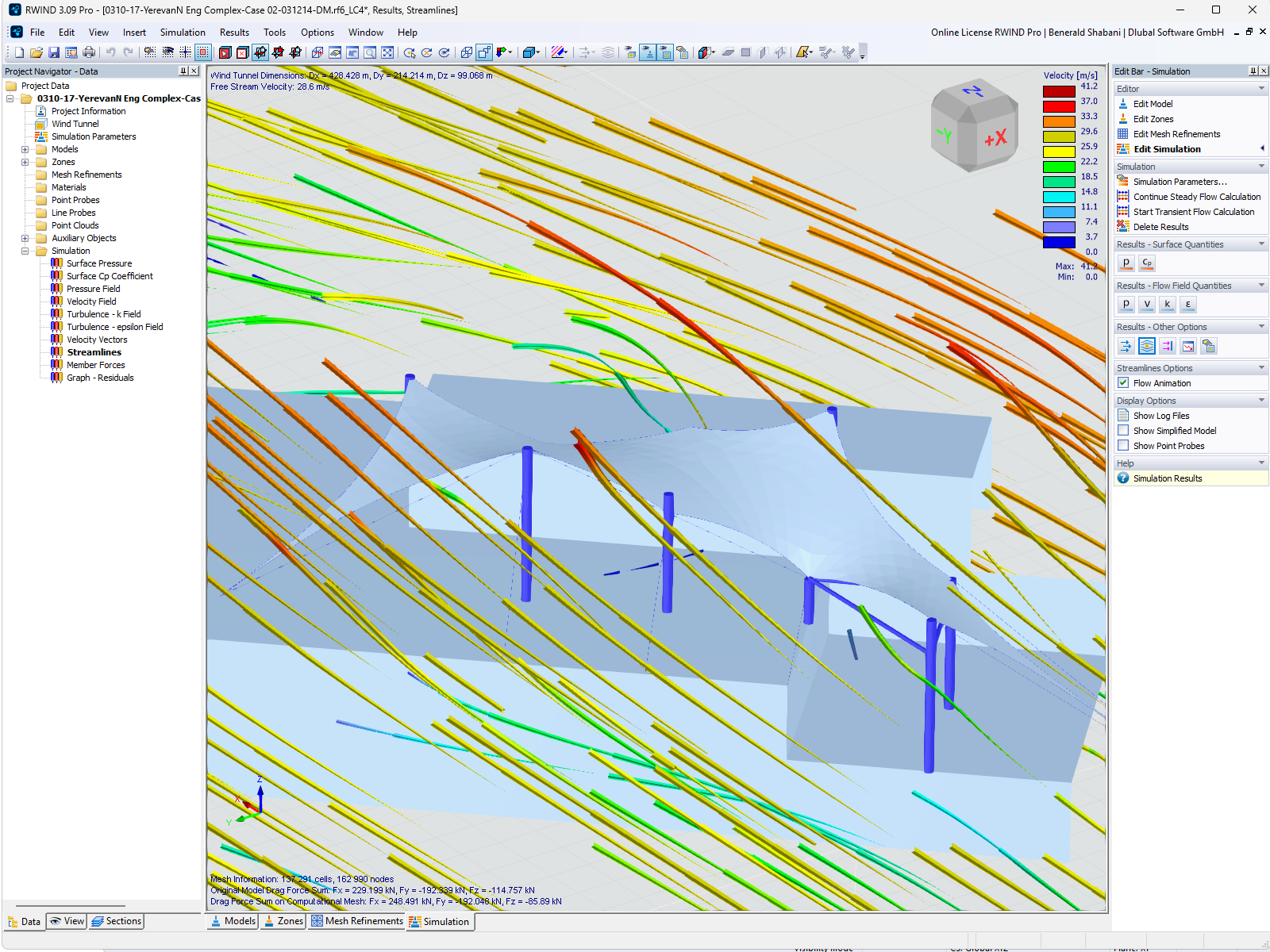

The image shows a wind analysis of a membrane structure in a simulation program. The structural interaction between the airflows and the membrane is visualized. The model provides detailed insights into the deformations and stress distributions. The dynamic interaction of wind loads on the structure is analyzed. Photo courtesy of Savana Group.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 93 |
| Number of Lines | 162 |
| Number of Members | 40 |
| Number of Surfaces | 16 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 21 |
| Number of Result Combinations | 0 |
| Total Weight | 13,203 t |
| Dimensions (Metric) | 63,000 x 16,700 x 28,000 m |
| Dimensions (Imperial) | 206.69 x 54.79 x 91.86 feet |
