Steel Structure of Parking Garage with Details of Supporting Elements

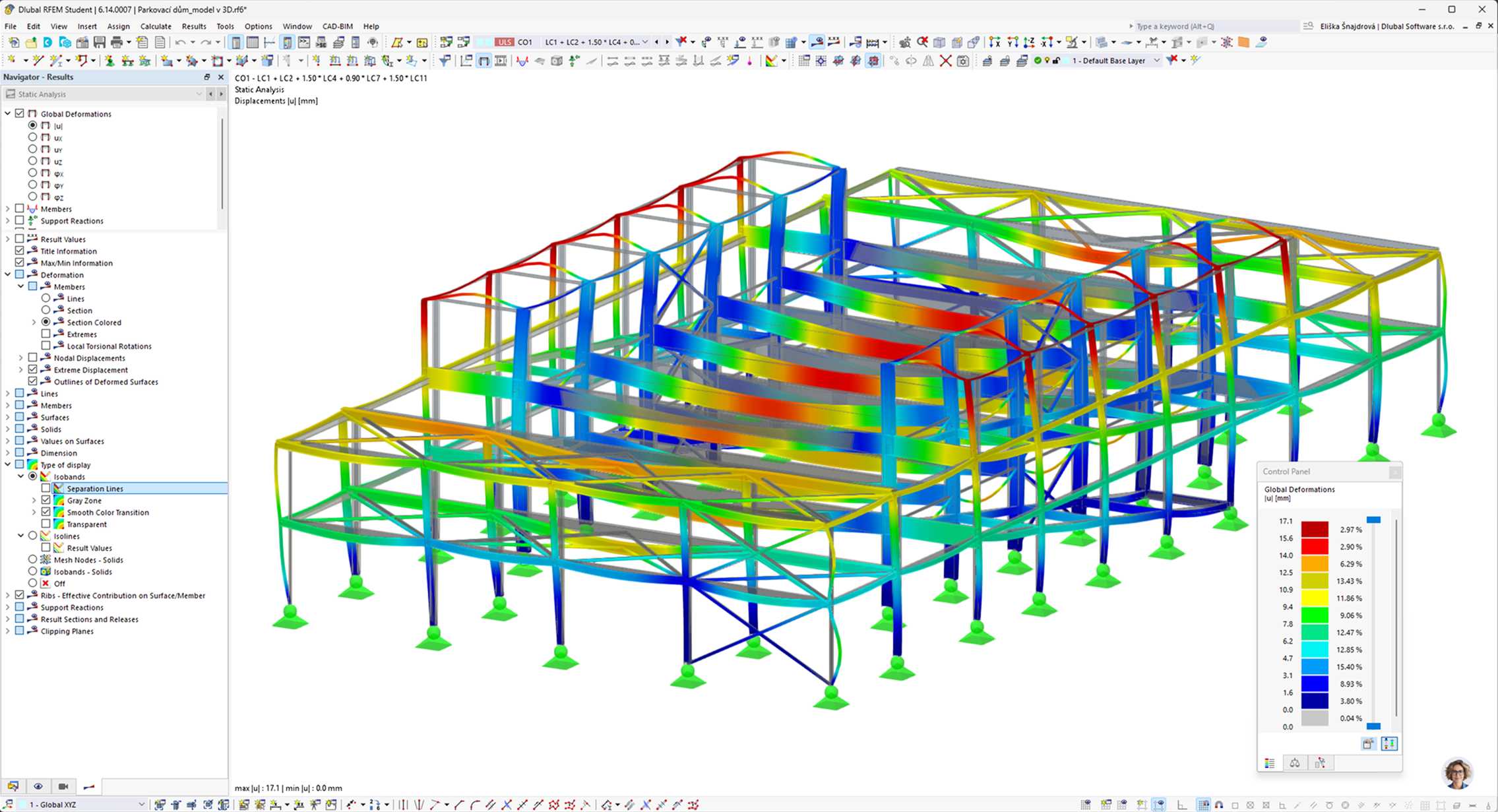

3D model of a two-story steel structure of the ČVUT parking garage in Čelákovice.
The model of the steel structure for the parking garage depicts a two-story structure with a main load-bearing system consisting of HEA 500 column frames and welded I800/250 cross-beams. The cross-beams have a span of 16.5 m with a slight gable slope of 1.75%. The structure includes canopies connected to the main structure and utilizes HEA 220 columns and IPE 300 horizontal beams for the gable walls. The model was created by Irina Okilová from the Czech Technical University in Prague (ČVUT) as part of the Dlubal Talent competition.
