Continuous Beam with Supports and Overhangs

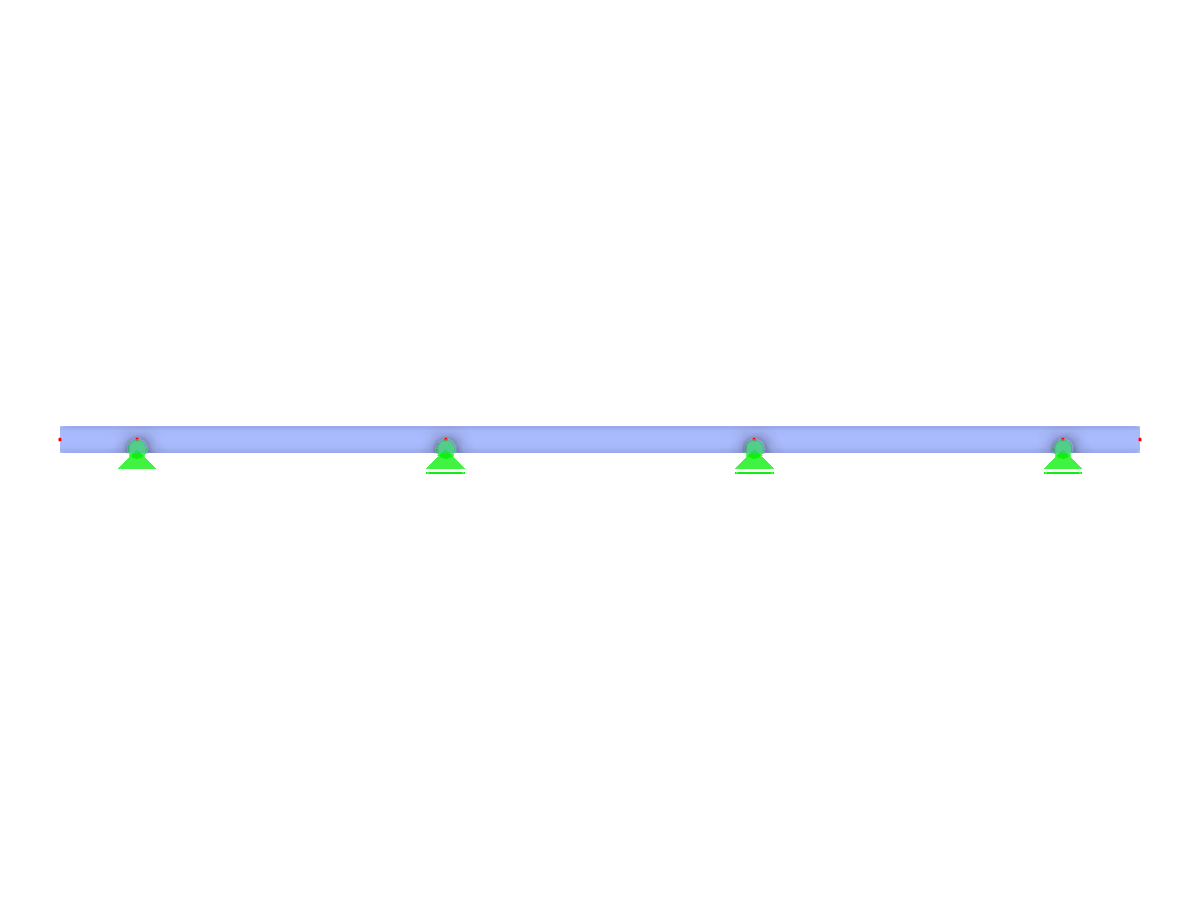

Continuous beam model with configurable supports and bays, featuring overhanging ends.
The image showcases a continuous beam model designed with a parametric configuration featuring multiple supports and bays. It displays overhanging ends enhancing the structural complexity. These elements allow for variations in support placements and span lengths, optimizing design flexibility.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.131 tons |
| Dimensions (Metric) | 7.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 22.97 x 0 x 0 feet |
