Gerber Beam with Hinged Odd Bays

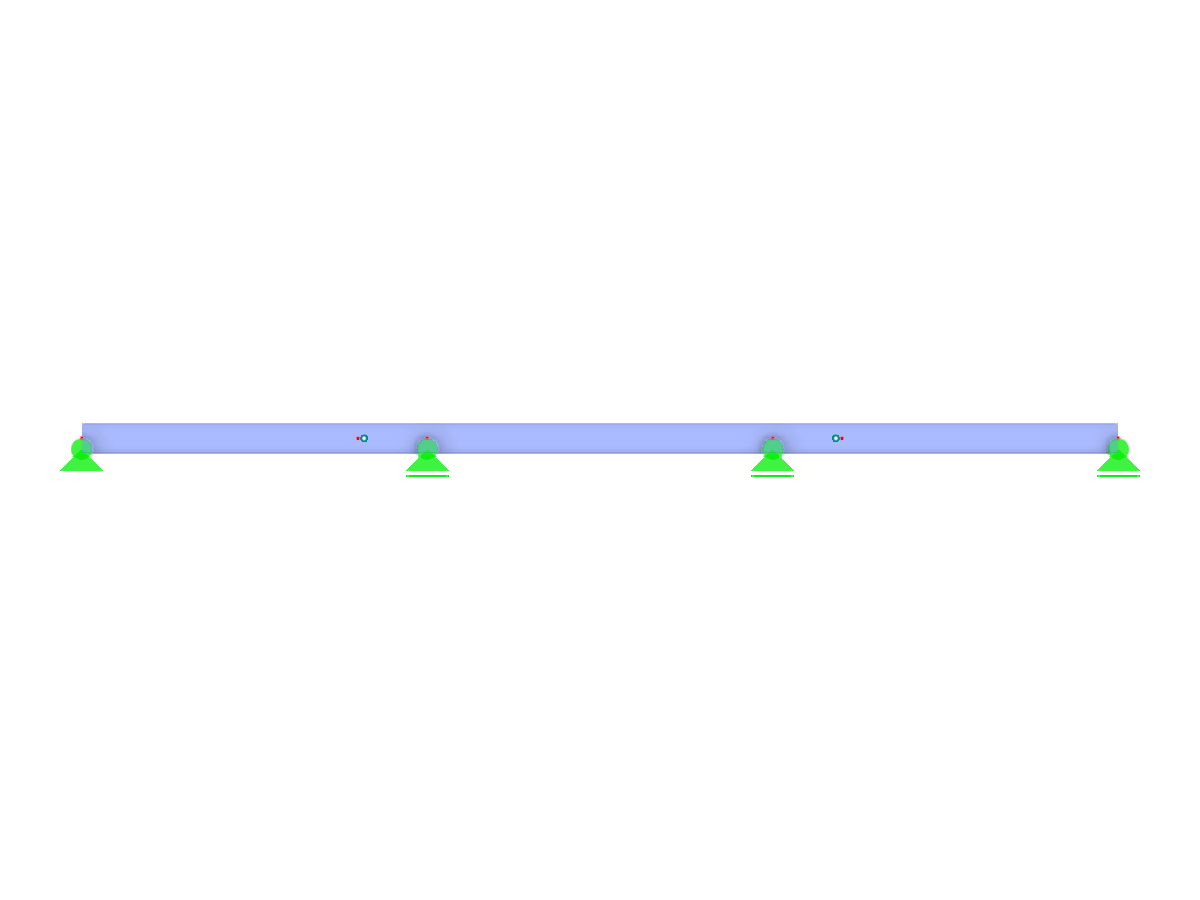

Continuous beam model featuring inserted hinges in odd-numbered bays, illustrating Gerber beam design efficiency.
The image illustrates a continuous beam with inserted hinges, known as a Gerber beam. This design includes odd-numbered bays equipped with hinges to optimize structural flexibility and efficiency. The Gerber beam is characterized by its unique distribution of hinges, which enhances load distribution. This engineering solution is widely applied in bridge design and other construction projects requiring efficient load management.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.113 tons |
| Dimensions (Metric) | 6,000 x 0,000 x 0,000 m |
| Dimensions (Imperial) | 19.69 x 0 x 0 feet |
