Continuous Beam Design with Hinges and Overhanging Ends

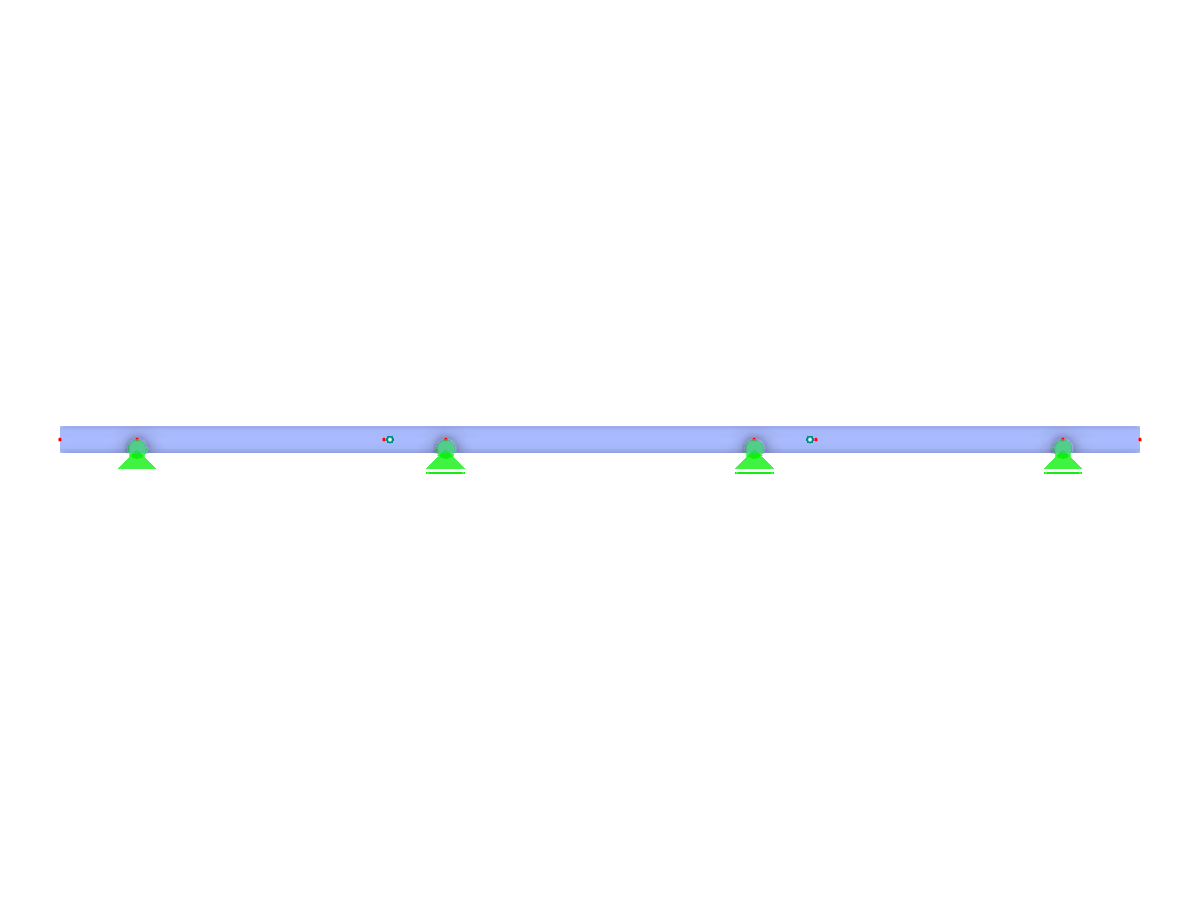

Diagram of a Gerber beam with hinges in odd bays and overhanging ends, demonstrating structural design features.
The image shows a representation of a continuous beam with hinges inserted at specific points to create a Gerber beam. The beam design includes odd bays equipped with hinges and overhanging ends on both sides. Hinges allow for rotational movement, which can be used in design to simplify analysis and construction. This structural configuration is ideal for managing load distribution efficiently.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 7 |
| Number of Members | 7 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.131 tons |
| Dimensions (Metric) | 7.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 22.97 x 0 x 0 feet |
