Inclined Continuous Beam with Hinges and Gerber Beam Design

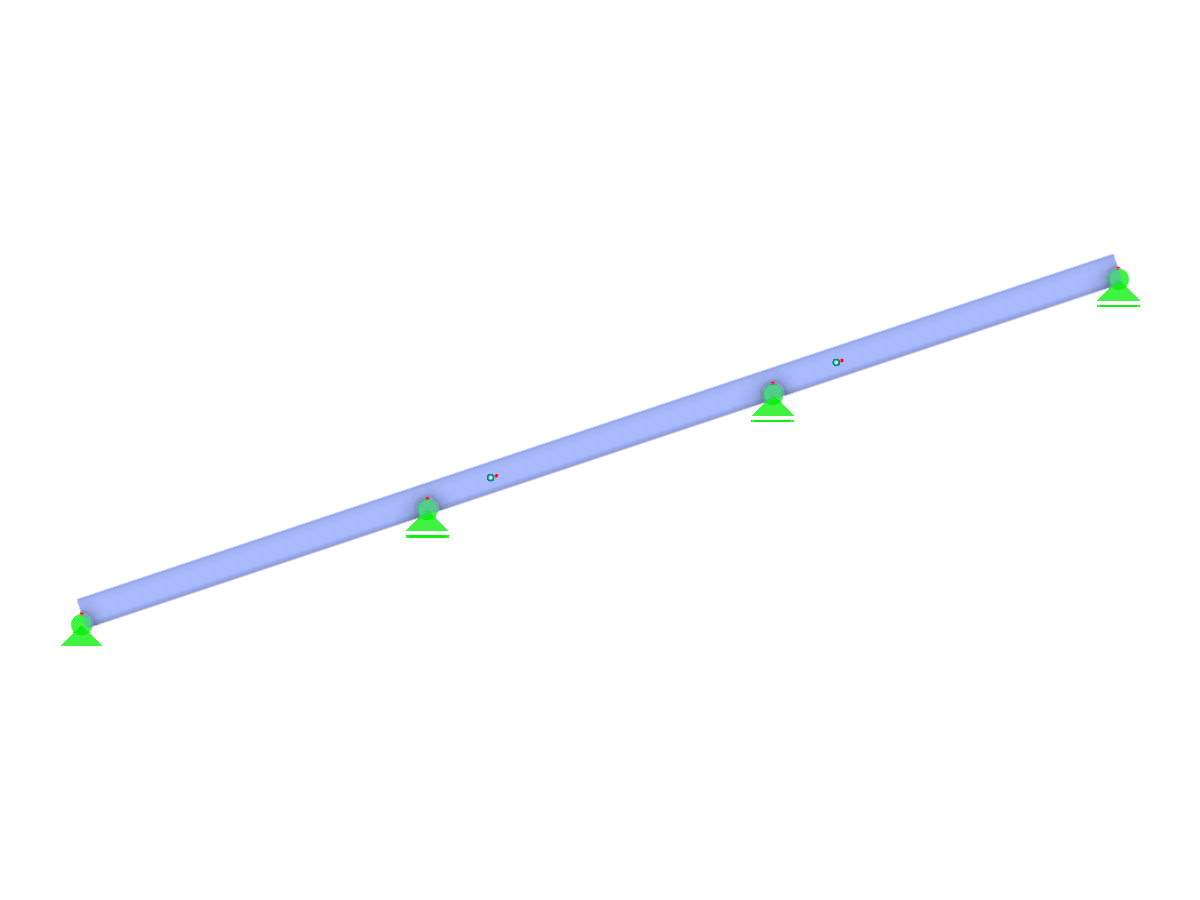

An inclined continuous beam with inserted hinges, featuring a Gerber beam design. The first bay of the beam lacks a hinge, while subsequent bays include one hinge each.
The image shows an inclined continuous beam with multiple bays. The first bay is constructed without a hinge, while the subsequent bays employ one hinge each, reflecting the Gerber beam concept. The design enables controlled articulation and stress distribution across the beam spans.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.119 tons |
| Dimensions (Metric) | 6.000 x 2.000 x 0.000 m |
| Dimensions (Imperial) | 19.69 x 6.56 x 0 feet |
