Inverted V-Bracing for Steel Structures

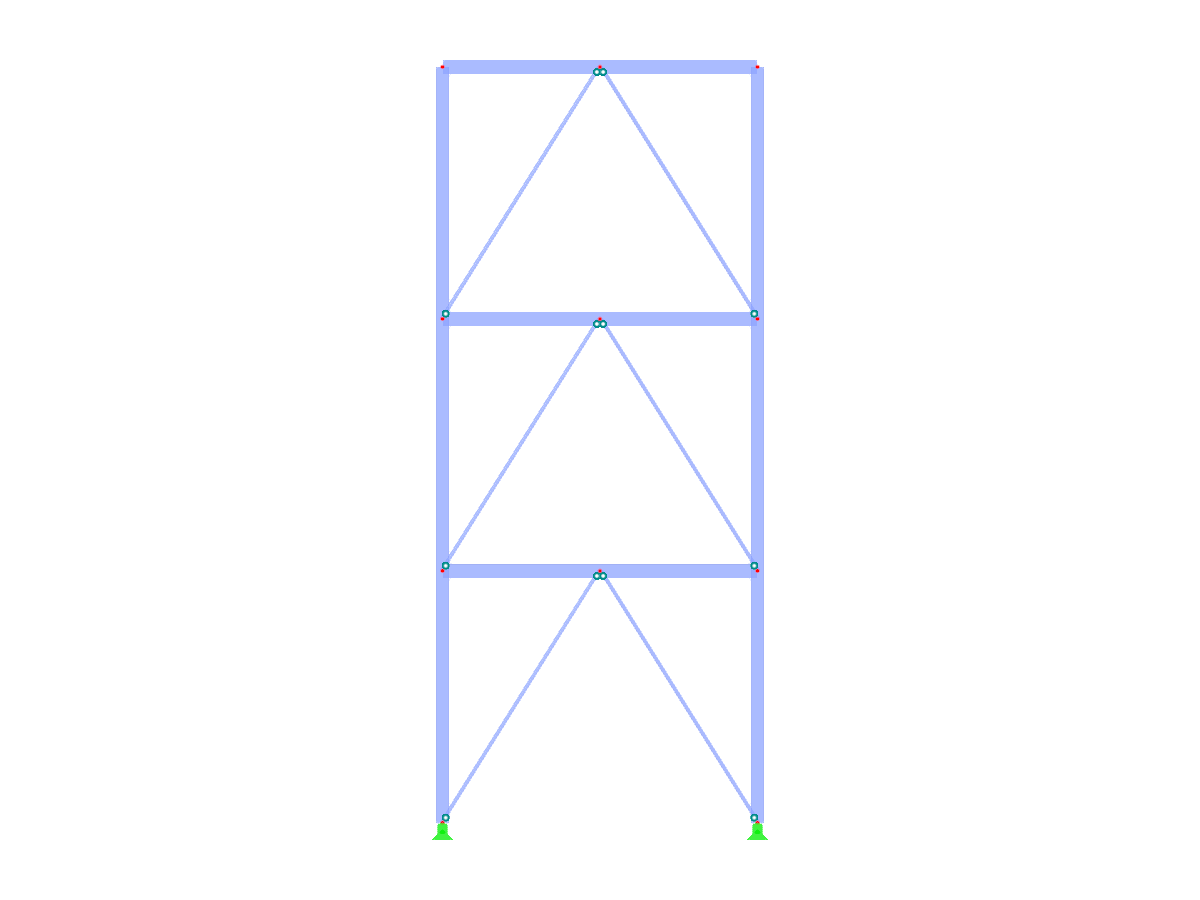

Inverted V-bracing design in a multistory steel structure with variable floor heights.
The image displays an engineering model featuring inverted V-bracing utilized in steel structures. Different floor heights are visible, showcasing structural adaptability for varying story levels. This bracing method aids in enhancing stability and distributing loads efficiently across the building framework. The image highlights the structural design flexibility provided by varying the number of stories and heights for each floor.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 11 |
| Number of Lines | 18 |
| Number of Members | 18 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.100 tons |
| Dimensions (Metric) | 5.000 x 12.000 x 0.000 m |
| Dimensions (Imperial) | 16.4 x 39.37 x 0 feet |
