Steel Structure Symmetrical Bracing System

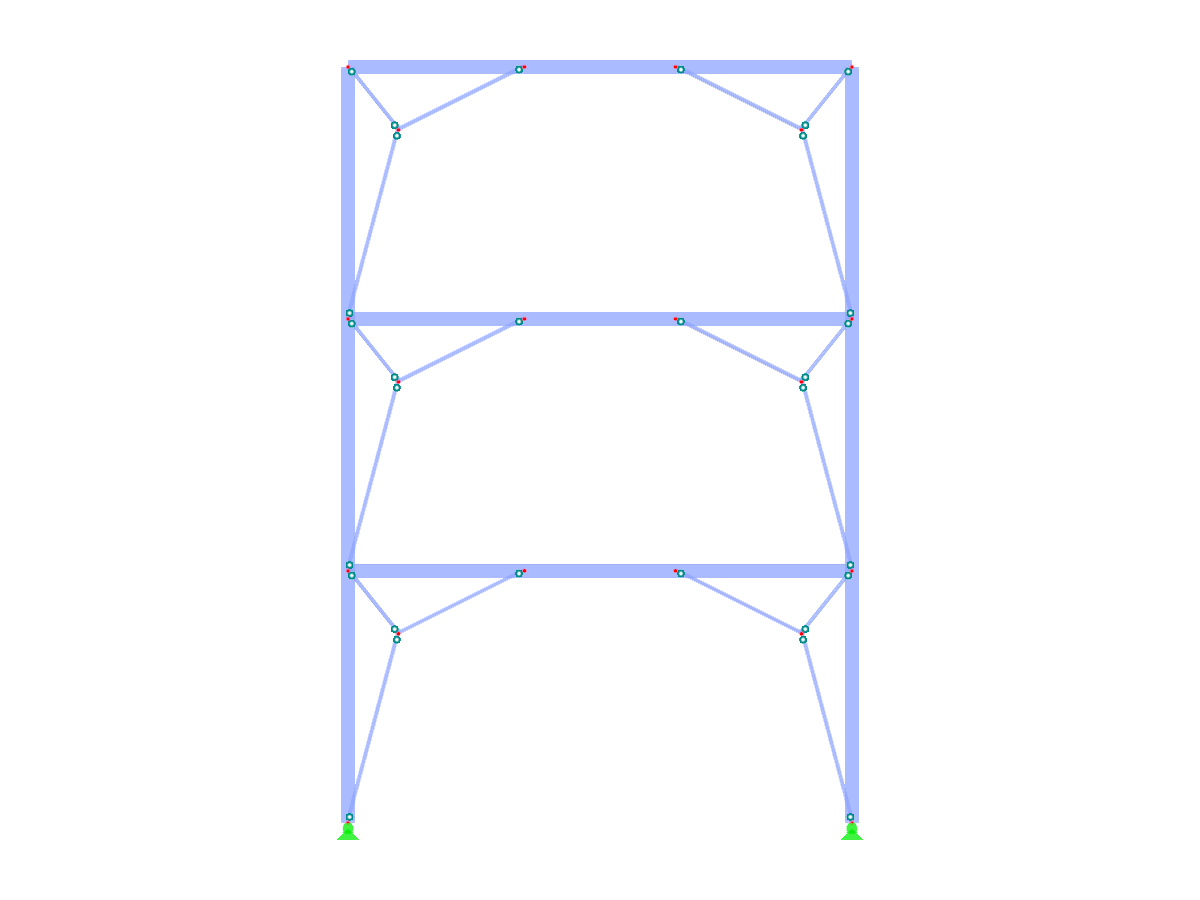

Symmetrical bracing system design for a steel structure showcasing structural stability and load optimization.
The image illustrates a symmetrical bracing system implemented in a steel structure. This design approach enhances the overall stability and load-bearing capacity of the construction. The system is typically used to counteract lateral forces and optimize the load distribution within the framework.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 20 |
| Number of Lines | 33 |
| Number of Members | 33 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.367 tons |
| Dimensions (Metric) | 8.000 x 12.000 x 0.000 m |
| Dimensions (Imperial) | 26.25 x 39.37 x 0 feet |
