Bracing System for Multistory Steel Structures

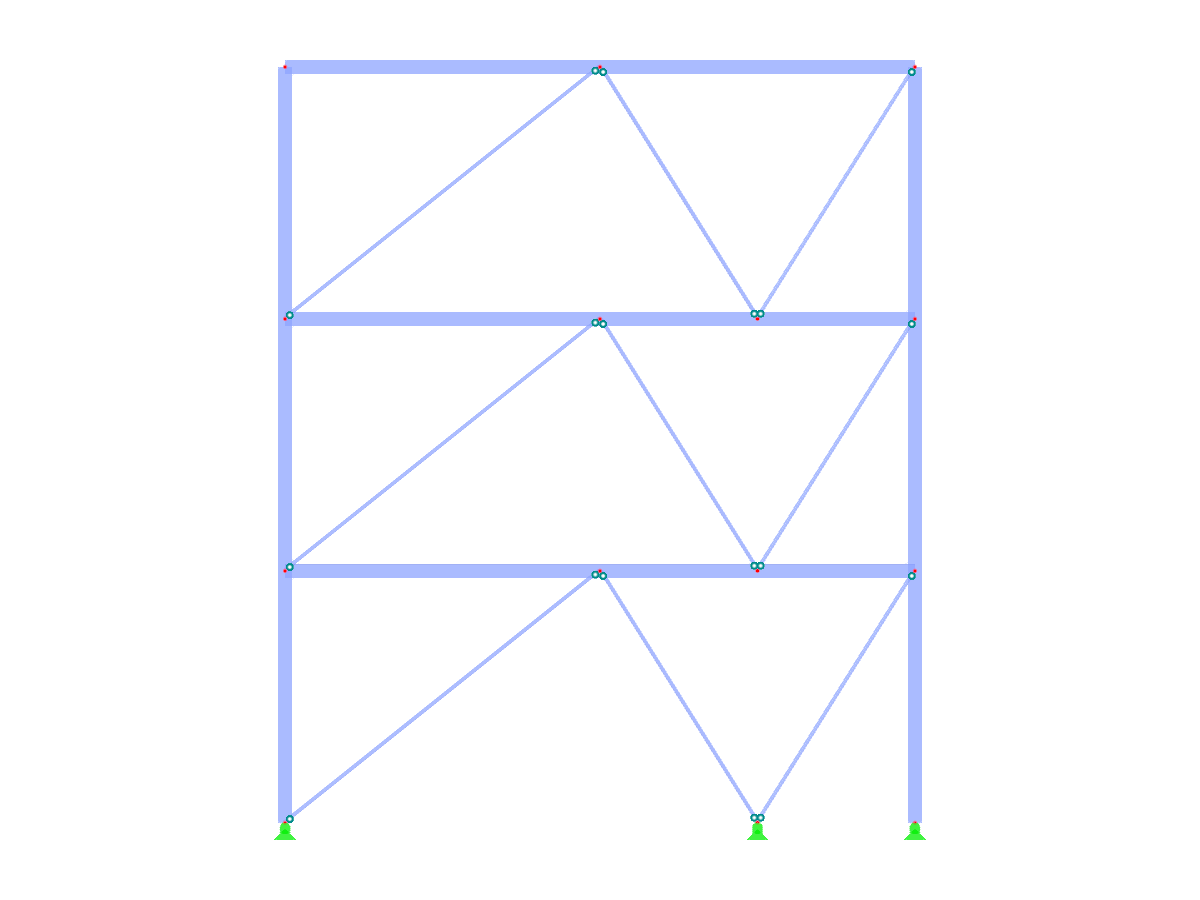

An engineering model showing a bracing system for variable-height steel structures with multiple floors.
The image depicts a bracing system designed for steel structures, featuring varying numbers of floors and differing heights. It highlights the application of advanced engineering techniques to accommodate structural diversity.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 14 |
| Number of Lines | 23 |
| Number of Members | 23 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.546 tons |
| Dimensions (Metric) | 10,000 x 12,000 x 0,000 m |
| Dimensions (Imperial) | 32.81 x 39.37 x 0 feet |
