Parabolic Bridge for RSTAB

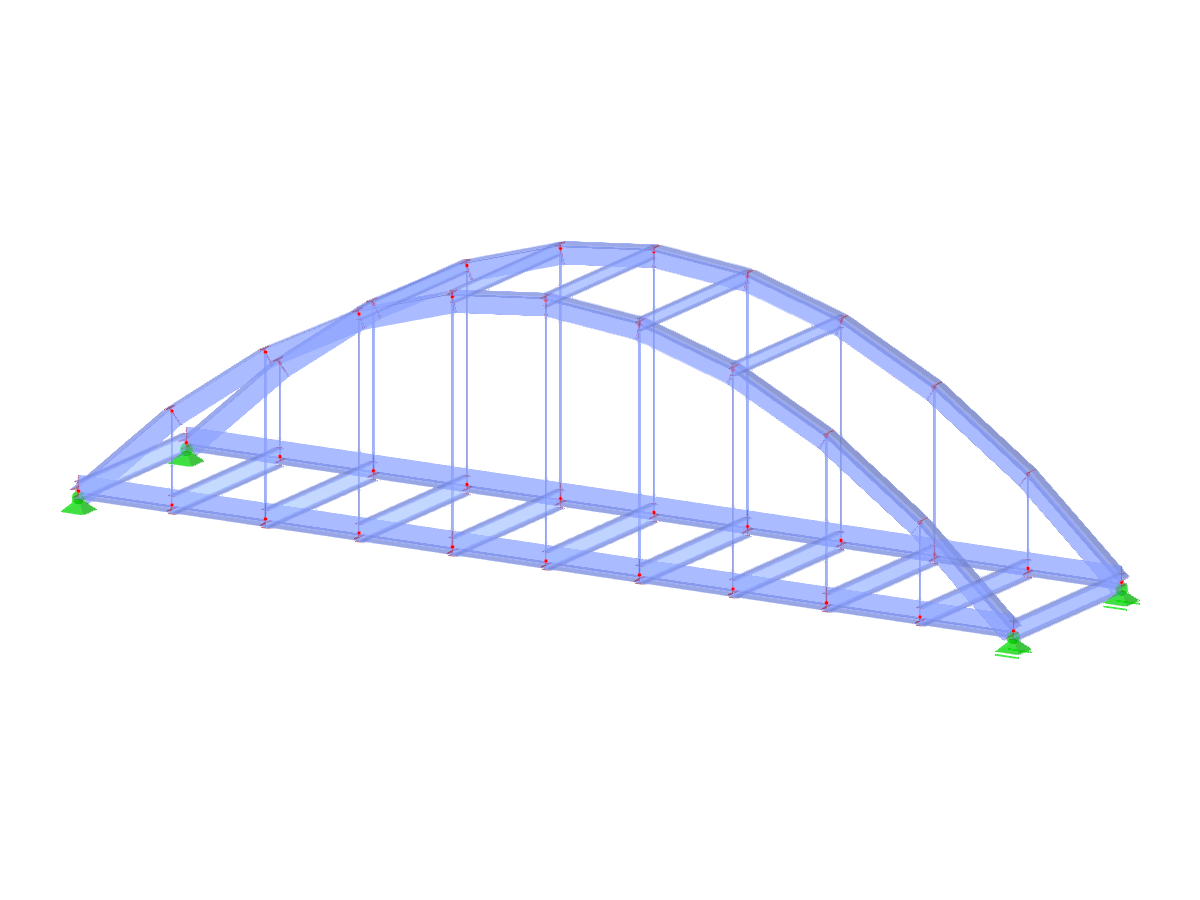

Visualization of a parabolic bridge designed with non-curved members for analysis using RSTAB software.
The image depicts a conceptual design of a parabolic bridge composed of non-curved members. It illustrates the structural elements arranged to form the parabolic shape, designed for analysis in RSTAB software. The focus is on the bridge's geometric configuration and member connections suitable for structural analysis and optimization.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 40 |
| Number of Lines | 74 |
| Number of Members | 74 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.169 tons |
| Dimensions (Metric) | 10.000 x 2.500 x 2.000 m |
| Dimensions (Imperial) | 32.81 x 8.2 x 6.56 feet |
