Basket-Handle Through-Truss Bridge with Parabolic Top Chords
Basket-handle through-truss bridge featuring parabolic top chords and tilted side trusses for enhanced structural aesthetics.

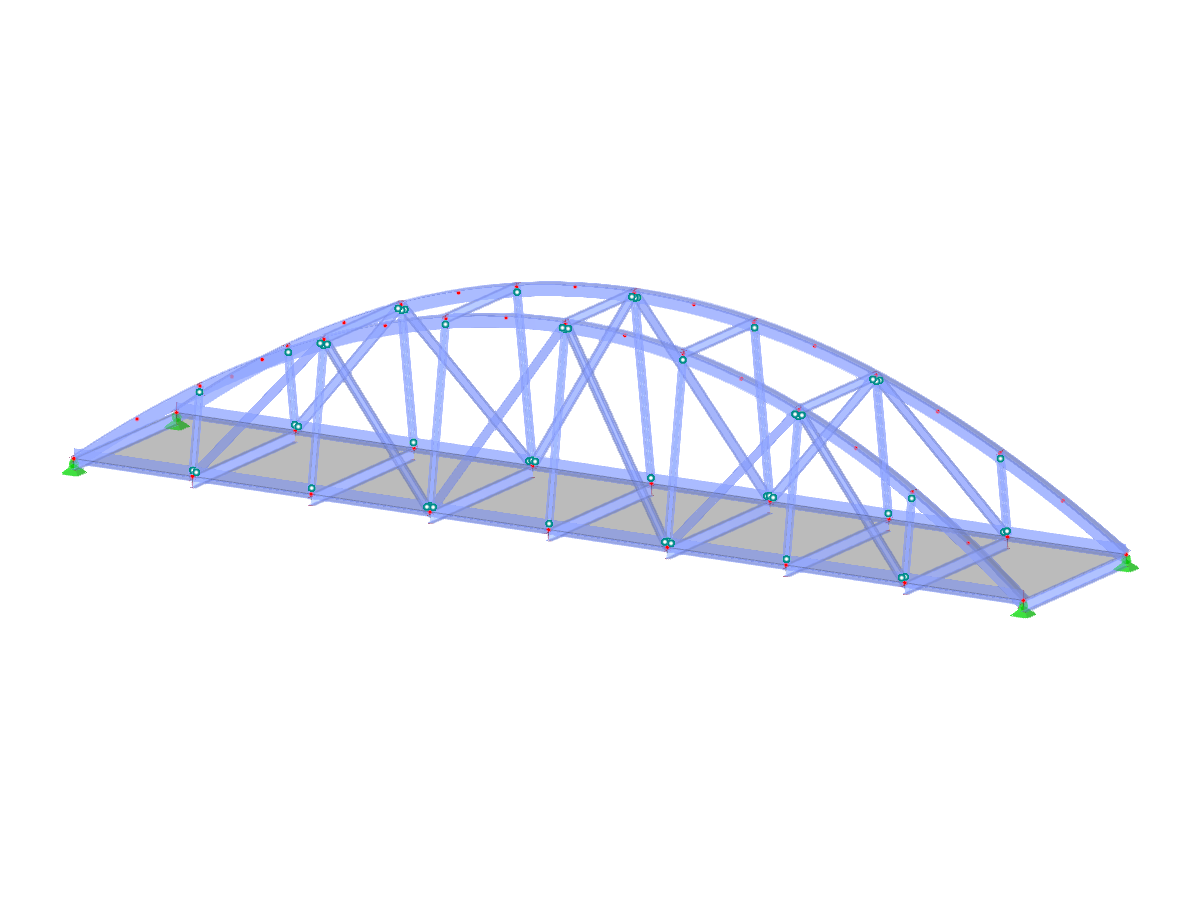

The image showcases a basket-handle through-truss bridge characterized by its inward-inclined side trusses and parabolic top chords. This design offers a blend of structural integrity and aesthetic appeal. Such bridge configurations are often chosen for their ability to efficiently distribute loads while maintaining an elegant form. The use of parabolic top chords adds to the architectural beauty and structural efficiency.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 48 |
| Number of Lines | 74 |
| Number of Members | 72 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 21.858 tons |
| Dimensions (Metric) | 16.000 x 3.000 x 3.000 m |
| Dimensions (Imperial) | 52.49 x 9.84 x 9.84 feet |
