Steel Joint with Diagonal Members Made of Round Bars

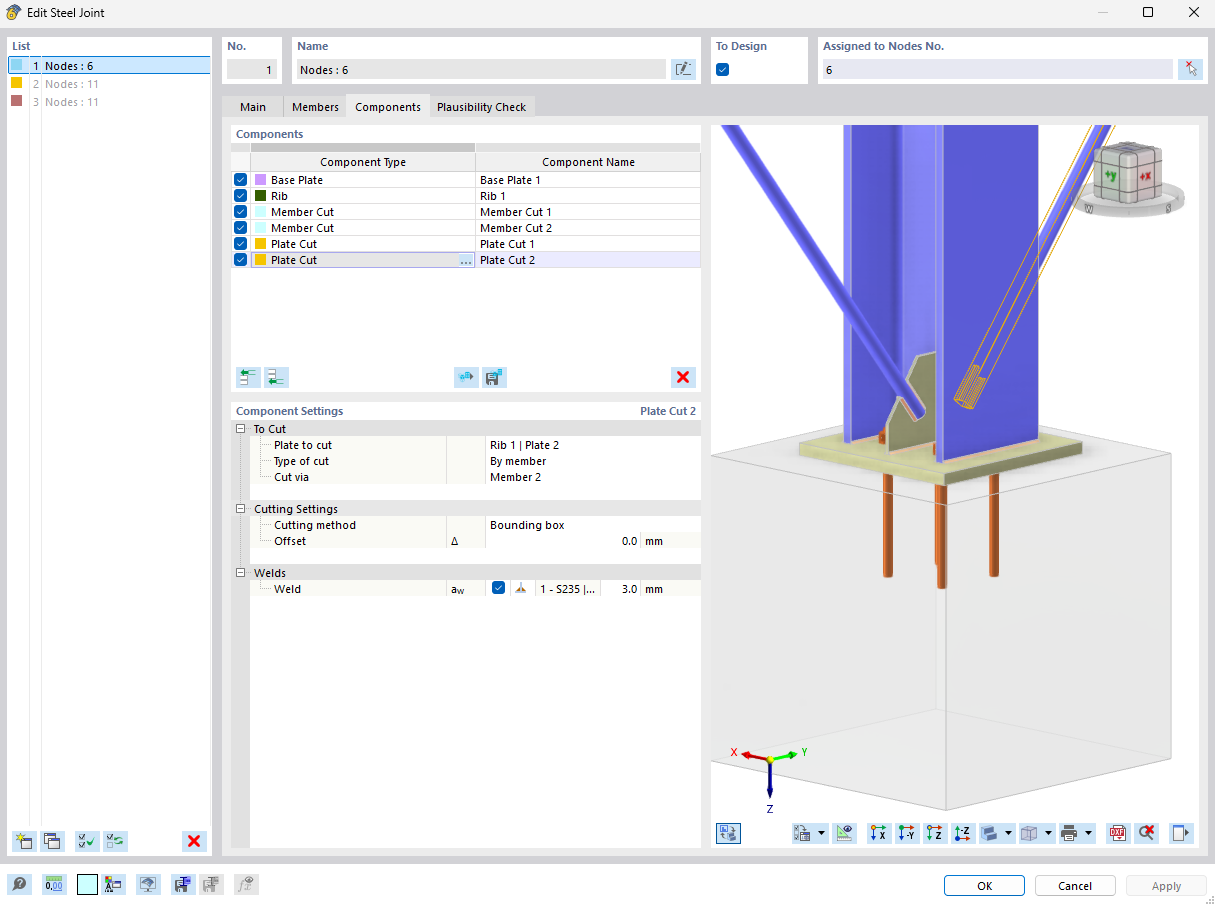

Detail of a steel joint with diagonal members made of massive round bars.

The image shows a steel joint that includes diagonal members made of round bars. The loads transferred by these members are taken into account when designing the steel joint. The design is performed within the Steel Design add-on.
