C-Shaped Wall Structure with Lips with Variable Story Height
C-shaped wall structure with variable number of stories demonstrating different configurations and structure stability under load conditions.

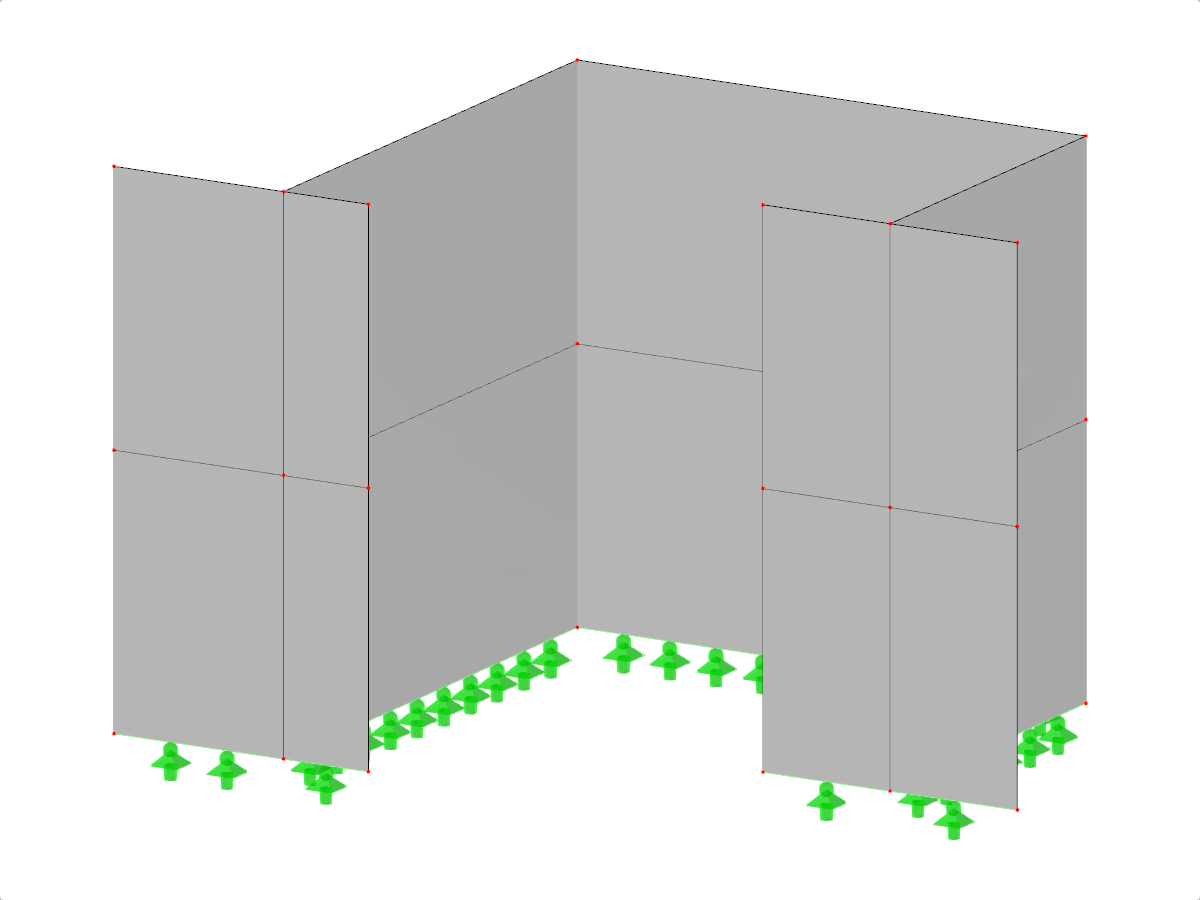

The image shows a C-shaped wall configuration with lips designed to vary in the number of stories. This structural design allows for modifications to the height of the building, potentially influencing stability and load distribution. The walls are stacked in a manner that could demonstrate different kinds of structural integrity tests. Such configurations are often analyzed for their performance under various conditions.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 24 |
| Number of Lines | 37 |
| Number of Members | 0 |
| Number of Surfaces | 14 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 66.000 tons |
| Dimensions (Metric) | 9.500 x 6.000 x 6.000 m |
| Dimensions (Imperial) | 31.17 x 19.69 x 19.69 feet |
