C-Shaped Multistory Wall Stack

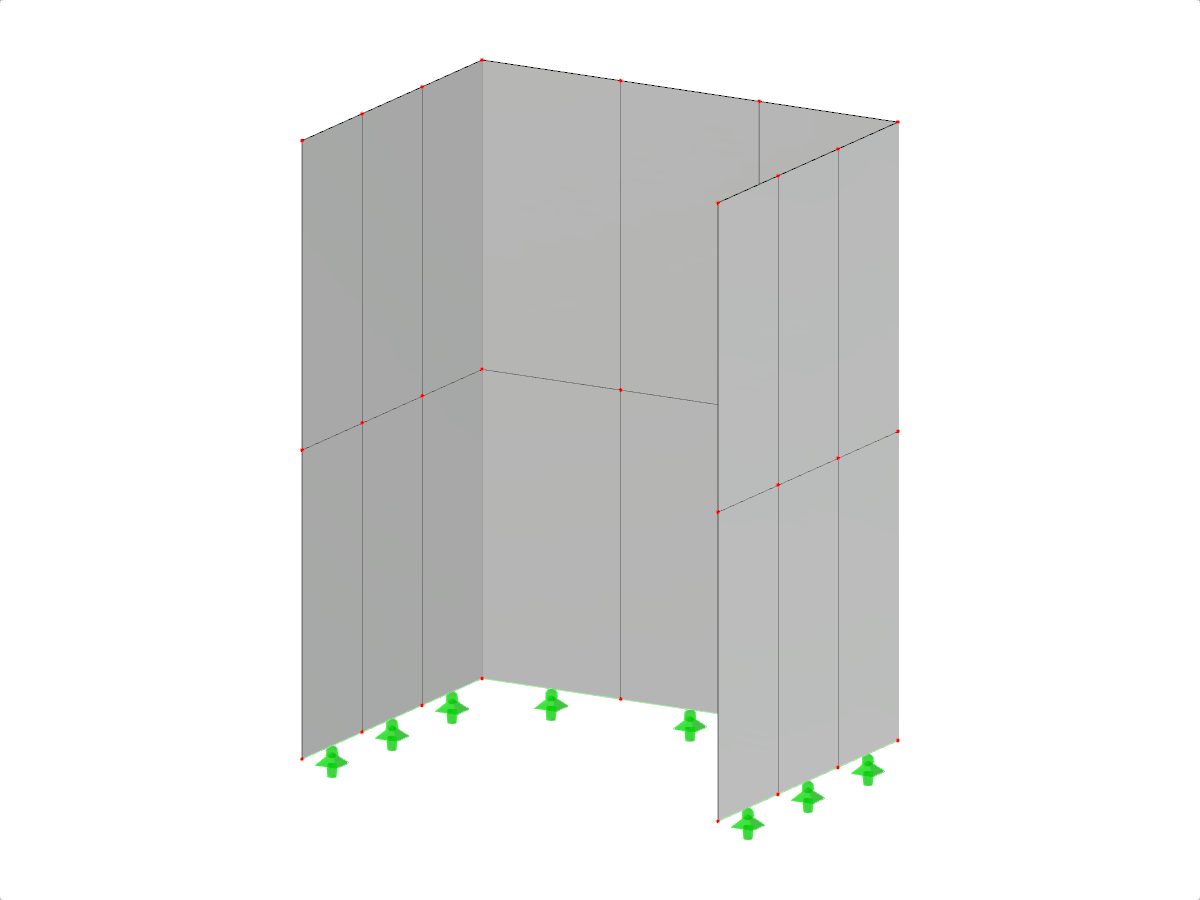

A 3D model of a C-shaped wall stack showing multiple variable stories.
The image displays a 3D structural model of a C-shaped wall stack exhibiting a variable number of stories. The model highlights different structural elements and their arrangement in a multistory configuration. The visualization is likely used for analysis or demonstration purposes in an engineering context.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 30 |
| Number of Lines | 47 |
| Number of Members | 0 |
| Number of Surfaces | 18 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 60.000 tons |
| Dimensions (Metric) | 6.000 x 8.000 x 4.500 m |
| Dimensions (Imperial) | 19.69 x 26.25 x 14.76 feet |
