Strap Beam Combined Footing Foundation Overview

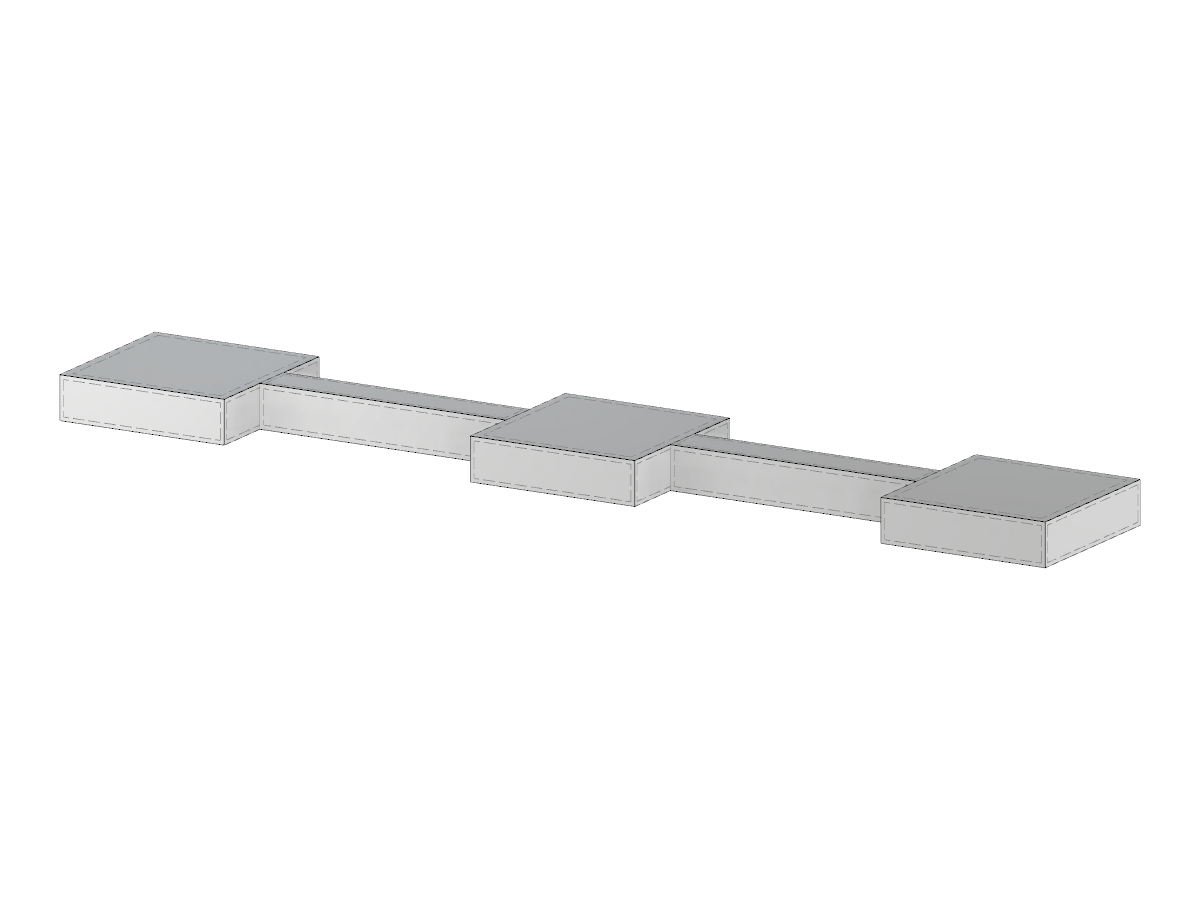

Combined footing foundation featuring a strap beam support system in a structural engineering context.
The image details a combined footing foundation with a strap beam system, illustrating the interaction of support elements under load. This type of foundation connects multiple footings with a strap beam to distribute loads efficiently across the structural elements. Its design ensures stability and uniform load distribution, essential for maintaining the integrity of the building structure.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 40 |
| Number of Lines | 60 |
| Number of Members | 0 |
| Number of Surfaces | 30 |
| Number of Solids | 5 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 18.750 tons |
| Dimensions (Metric) | 12.000 x 0.500 x 2.000 m |
| Dimensions (Imperial) | 39.37 x 1.64 x 6.56 feet |
