Plate Design Without Stiffeners
A flat plate structure without additional stiffening elements designed for analysis and simulation. Suitable for static and dynamic load scenarios.

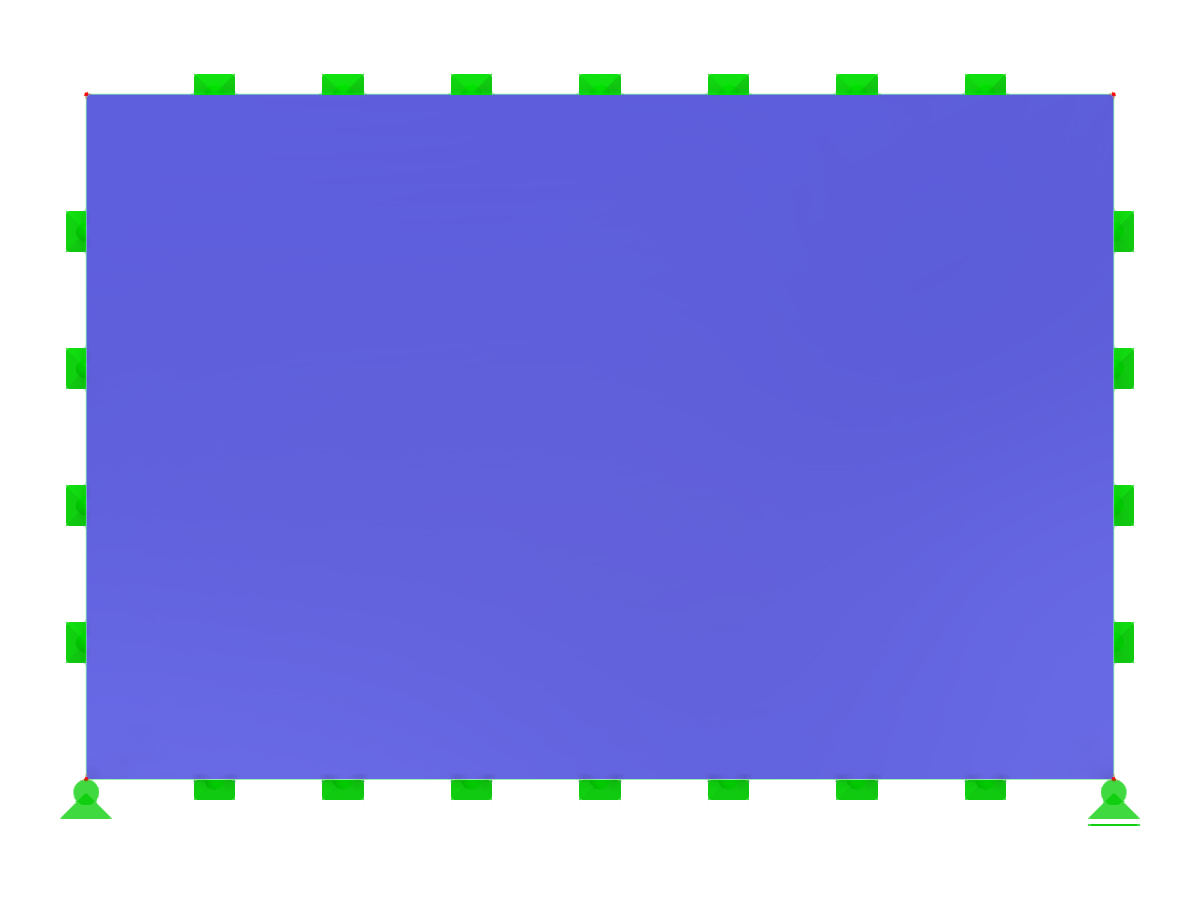

The image depicts a plate structure model that does not include any stiffeners. This model is useful for analyzing structural behavior under various loads without the influence of additional reinforcing elements. Suitable for both static and dynamic simulations. The design is specific to scenarios where stiffness is not enhanced by geometric reinforcements.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.471 tons |
| Dimensions (Metric) | 3.000 x 2.000 x 0.000 m |
| Dimensions (Imperial) | 9.84 x 6.56 x 0 feet |
