Single Sided Warehouse Storage Rack Cantilever Frame

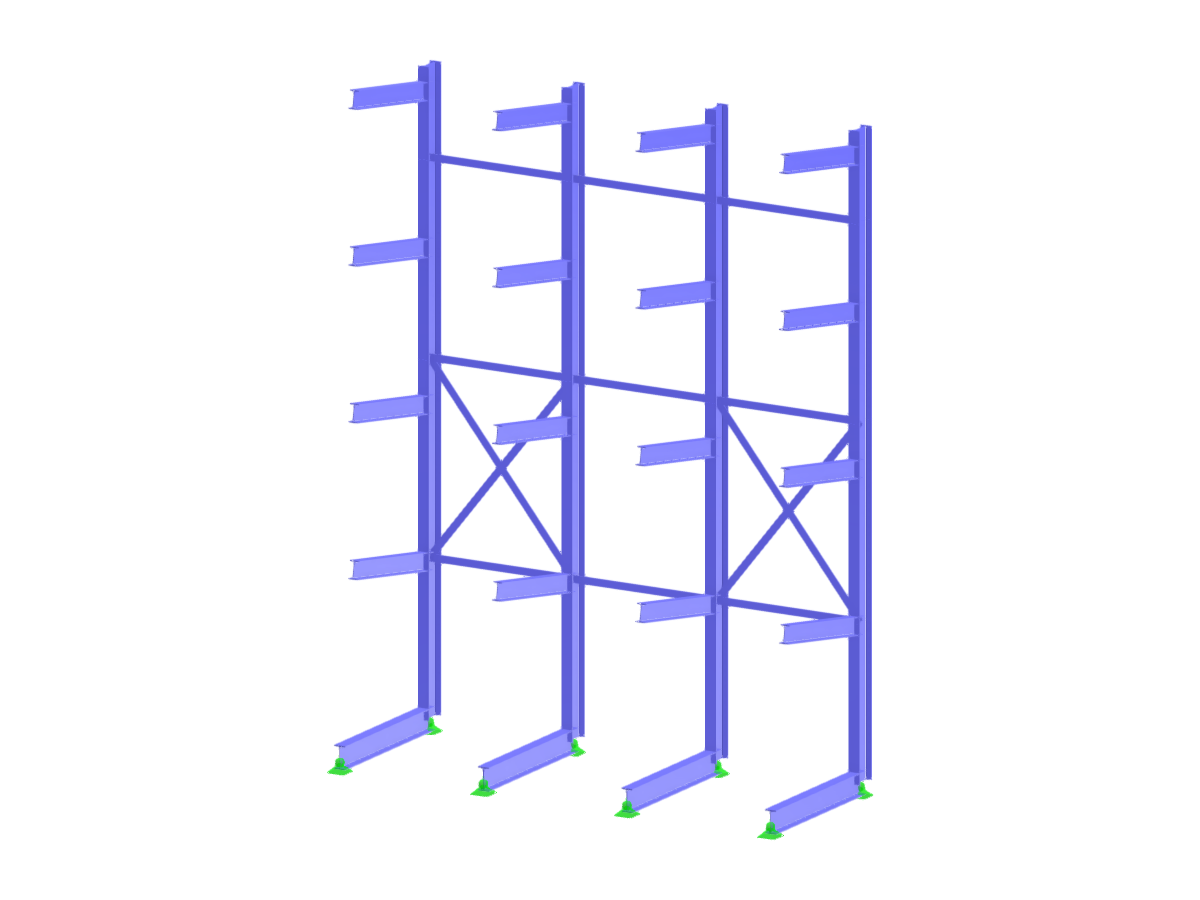

Single sided cantilever rack frame used in a warehouse for storage organization.
The image shows a single sided cantilever rack frame designed for warehouse storage. This type of frame is typically used to organize and store various materials such as pipes, beams and other long items. The cantilever design allows for easy accessibility of stored items and efficient use of space.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 56 |
| Number of Lines | 49 |
| Number of Members | 49 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.731 tons |
| Dimensions (Metric) | 3.600 x 4.900 x 1.300 m |
| Dimensions (Imperial) | 11.81 x 16.08 x 4.27 feet |
