90 Degree Curve with Varying Radius

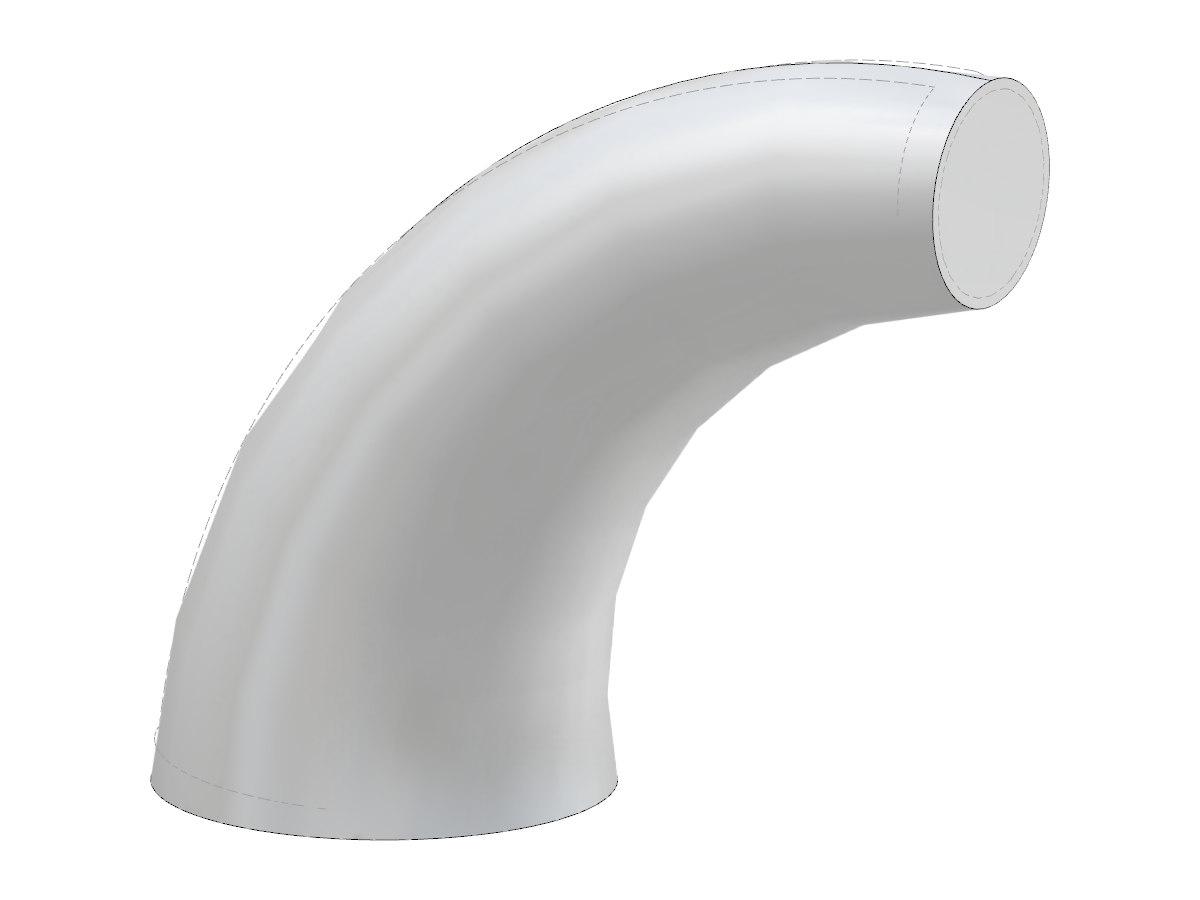

A detailed illustration of a solid 90-degree curve showcasing varying radii at its beginning and end.
The image presents a solid 90-degree curve where the radii differ at the beginning and at the end. The variation in radius is clearly delineated, offering insight into how geometric transitions can be modeled. This demonstrates the application of curve geometry principles in design engineering, capturing the complexity and precision required in structural modeling.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 2 |
| Number of Lines | 3 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 169.918 tons |
| Dimensions (Metric) | 8.000 x 7.019 x 4.000 m |
| Dimensions (Imperial) | 26.25 x 23.03 x 13.12 feet |
