Single Post with Parametric Arc Curve

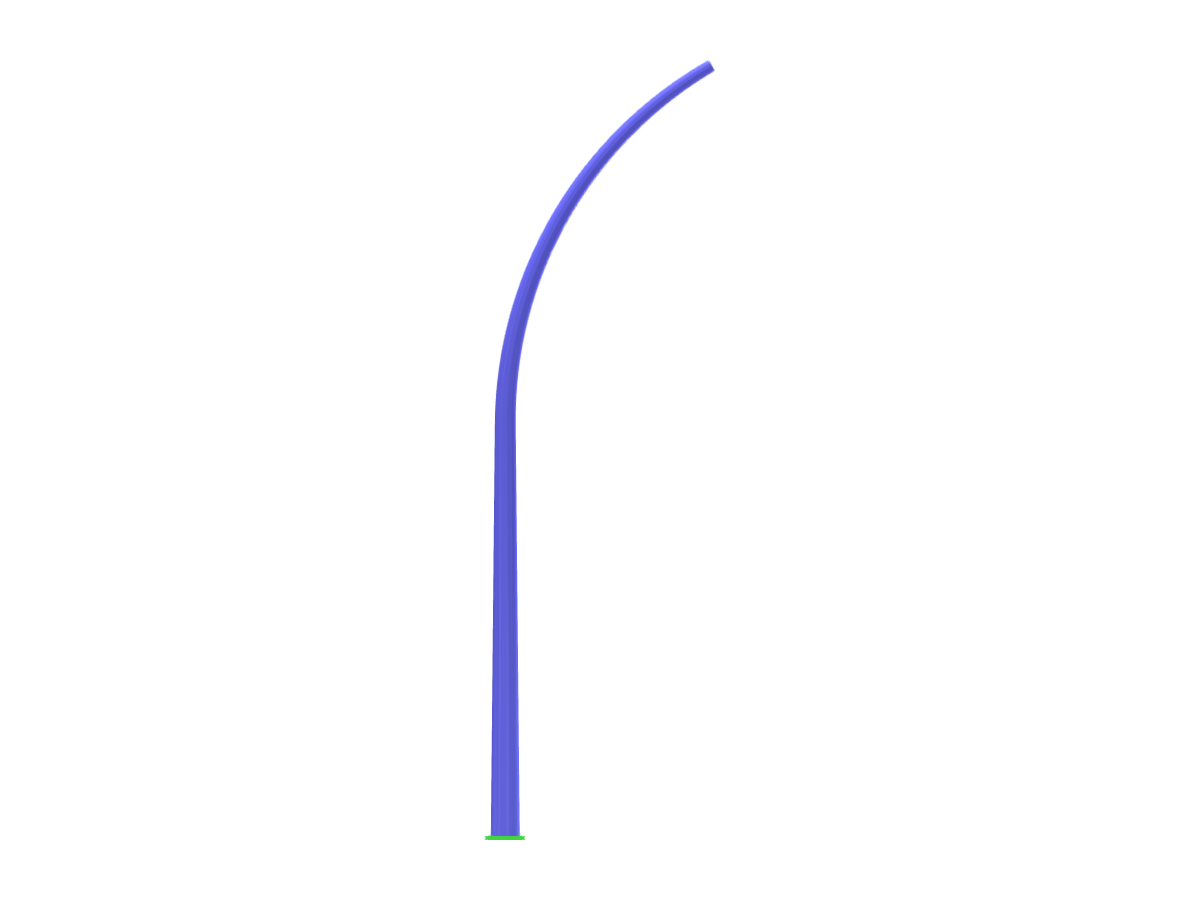

Illustration of a wind barrier post featuring a parametric arc curve at the top for aerodynamic efficiency.
The image depicts a single vertical post designed as a wind barrier, showcasing a parametric arc curve at its top. This design is intended to provide aerodynamic efficiency and structural stability. The curve follows a parametric design, optimizing the wind flow over the barrier.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.044 tons |
| Dimensions (Metric) | 3.000 x 11.196 x 0.000 m |
| Dimensions (Imperial) | 9.84 x 36.73 x 0 feet |
