Rectangular Truss Column with Top Curve

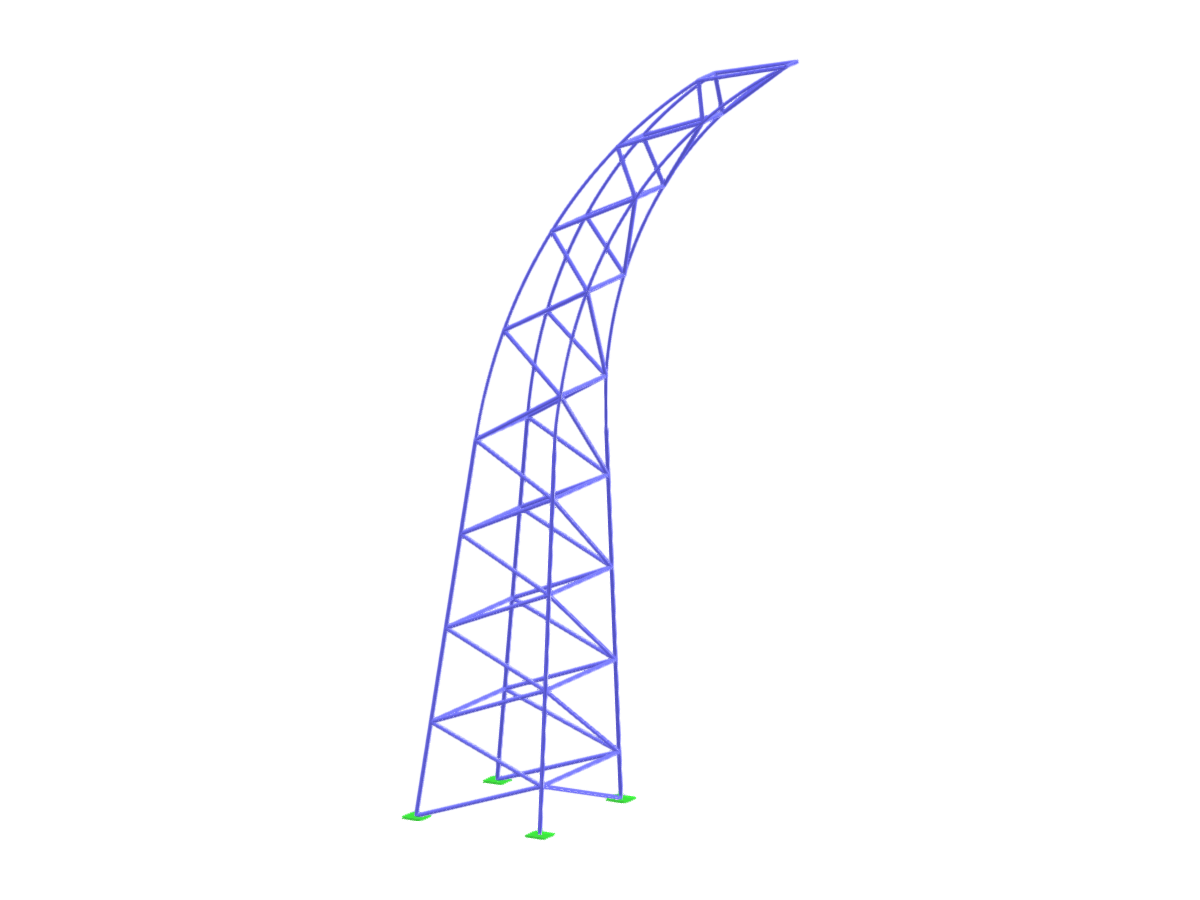

The image shows a rectangular truss column featuring a curved top, highlighting an architectural and structural design element.
The image features a rectangular truss column with a distinctive curve at its top. This curved design element not only serves an aesthetic purpose but also plays a crucial role in the structural analysis. Such innovative design practices are often explored in the field of modern structural engineering. The focus is on showcasing the interaction between stability and design in truss structures.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 58 |
| Number of Lines | 96 |
| Number of Members | 96 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.679 tons |
| Dimensions (Metric) | 11.900 x 24.990 x 5.000 m |
| Dimensions (Imperial) | 39.04 x 81.99 x 16.4 feet |
