Curved Two-Layered Space Trusses for Roof Enclosures
Curved two-layered space trusses form a semi-octahedral basis within a circular cylindrical shape, enhancing wide-span roof designs.

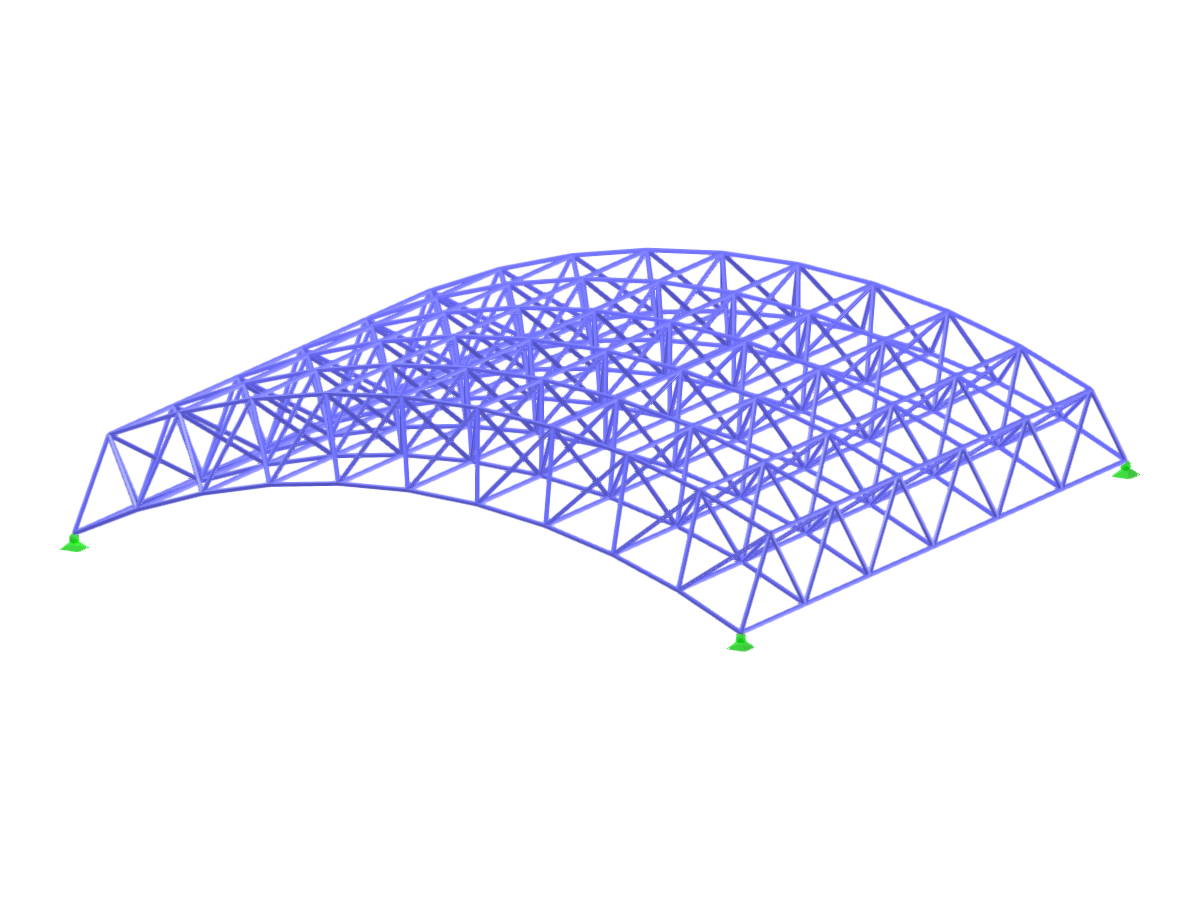

The image showcases curved two-layered space trusses designed for wide-span roof enclosures. These trusses utilize a semi-octahedral configuration, contributing to the circular cylindrical form of the structure. This innovative design approach ensures expansive and robust roof coverage. The structural intricacy is evident in the layout, highlighting advanced engineering principles.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 137 |
| Number of Lines | 480 |
| Number of Members | 480 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.438 tons |
| Dimensions (Metric) | 12.000 x 2.683 x 12.000 m |
| Dimensions (Imperial) | 39.37 x 8.8 x 39.37 feet |
